  9. Rectangular Power Connector, 12 Contact(S), Male, Solder Terminal, Receptacle

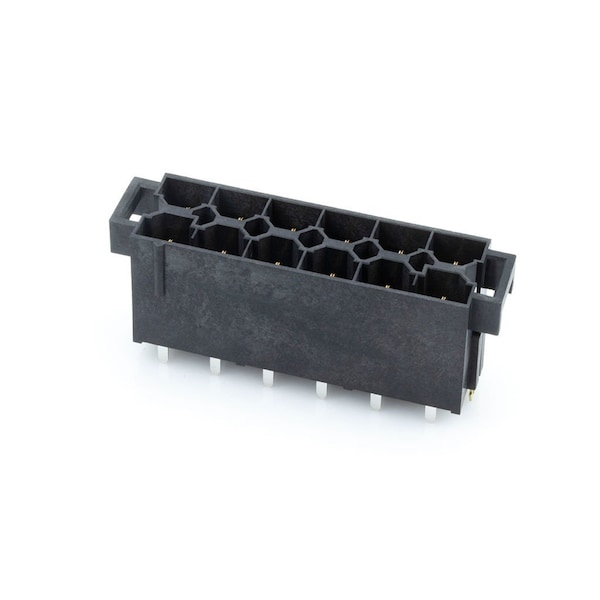

Molex Rectangular Power Connector, 12 Contact(S), Male, Solder Terminal, Receptacle 439151204 - main

Rectangular Power Connector, 12 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 439151204

  • Zoro # G505910252

product price: $48.59
/ea
Sold in multiples of 2 for $97.18

Key Features

Color
Black
Number of Rows
2
Series
43915
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
439151204
Zoro #
G505910252
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.57mm
PC Tail Length
3.50mm

Details

Color
Black
Number of Rows
2
Series
43915
Max. Voltage
600V
Application
Power, Wire-to-Board
Max. Temp.
235°C
Material
High Temperature Thermoplastic
Standards
UL E29179
Hole Center to Center
1 mm
Terminal Type
Through Hole
Current Rating
50 A
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Number of Contacts
12
Contact Finish
Gold Plated
Plating min - Mating
0.762µm
Max-Temp
235
Keying to Mating Part
None
Temperature Range - Operating
-40° to +105°C
Stackable
No
Circuits (Loaded)
12
Max-Duration
30
UL
E29179
Max-Cycle
3
PCB Locator
Yes
Orientation
Vertical
Material - Plating Mating
Gold
Shrouded
Fully
Glow-Wire Capable
No
Polarized to Mating Part
Yes
Polarized to PCB
Yes
Durability (mating cycles max)
100
Guide to Mating Part
No
Material - Resin
High Temperature Thermoplastic
Lock to Mating Part
Yes
First Mate / Last Break
No
Material - Metal
Brass
Flammability
94V-0
Material - Plating Termination
Tin
Pitch - Mating Interface
10.00mm
Current - Maximum per Contact
50.0A
Component Type
PCB Header
PCB Retention
Yes
Product Name
Mini-Fit Sr.
Breakaway
No
