  9. Rectangular Power Connector, 12 Contact(S), Male, Solder Terminal, Receptacle

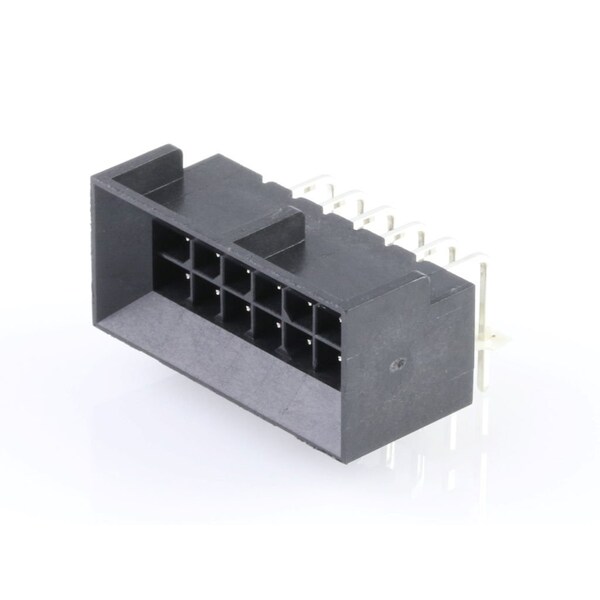

Molex Rectangular Power Connector, 12 Contact(S), Male, Solder Terminal, Receptacle 444281202 - main

Rectangular Power Connector, 12 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 444281202

  • Zoro # G305910643

product price: $4.45
/ea
Sold in multiples of 20 for $89.00

Key Features

Color
Black
Number of Rows
2
Series
44428
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
444281202
Zoro #
G305910643
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.381 µm
PC Tail Length
3.50mm
PCB Thickness - Recommended
1.60mm

Details

Color
Black
Number of Rows
2
Series
44428
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
Terminal Type
Through Hole
Max. Temp.
260°C
Hole Center to Center
3 mm
Features
Surface Mount Compatible
Material
High Temperature Thermoplastic
Standards
CSA Certified; UL E29179
Current Rating
8.5 A
Contact Finish
Gold Plated
Number of Contacts
12
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Material - Resin
Nylon
Polarized to PCB
Yes
Max-Temp
260
Material - Plating Termination
Tin
Temperature Range - Operating
-40° to +105°C
PCB Retention
Yes
Keying to Mating Part
None
PCB Locator
Yes
Circuits (Loaded)
12
Stackable
No
Durability (mating cycles max)
30
Max-Duration
5
Lock to Mating Part
Yes
Product Name
Micro-Fit BMI
Pitch - Mating Interface
3.00mm
Plating min - Mating
0.381µm
Flammability
94V-0
Current - Maximum per Contact
8.5A
Breakaway
No
Guide to Mating Part
No
Shrouded
Fully
Glow-Wire Capable
No
CSA
LR19980
Max-Cycle
1
First Mate / Last Break
No
Component Type
PCB Header
Material - Plating Mating
Gold
Orientation
Right Angle
UL
E29179
Material - Metal
Brass
