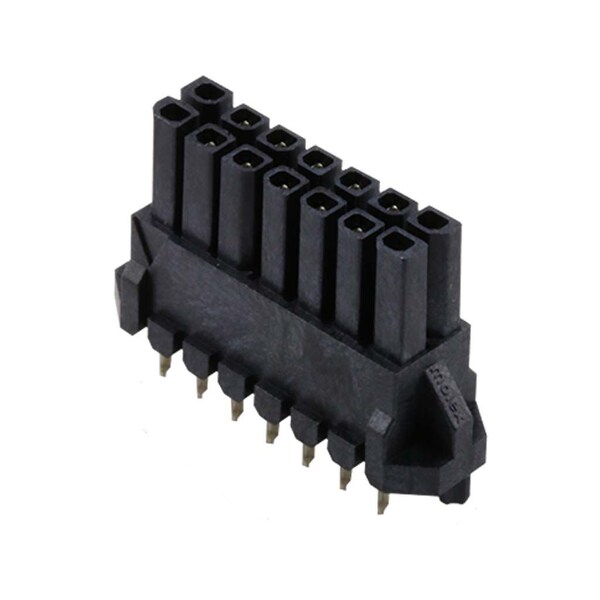

Rectangular Power Connector, 14 Contact(S), Female, Solder Terminal, Receptacle

  • Mfr # 447691402
  • Zoro # G105910669
product price:
$
5.85
/ea
Sold in multiples of 15 for $87.75

Key Features

Color
Black
Number of Rows
2
Series
44769
Max. Voltage
250V
Application
Board-to-Board, Power, Wire-to-Board
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
447691402
Zoro #
G105910669
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.381 µm
PCB Thickness - Recommended
1.57mm
PC Tail Length
3.40mm

Details

Color
Black
Number of Rows
2
Series
44769
Max. Voltage
250V
Application
Board-to-Board, Power, Wire-to-Board
Material
Liquid Crystal Polymer
Standards
CSA Certified; UL E29179
Terminal Type
Through Hole
Hole Center to Center
3 mm
Max. Temp.
260°C
Features
Surface Mount Compatible
Number of Contacts
14
Contact Finish
Gold Plated
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Current Rating
8.5 A
Glow-Wire Capable
No
Flammability
94V-0
Max-Temp
260
Material - Resin
Liquid Crystal Polymer
Material - Metal
Phosphor Bronze
Product Name
Micro-Fit BMI
UL
E29179
Circuits (Loaded)
14
Temperature Range - Operating
-40° to +105°C
Component Type
PCB Receptacle
Polarized to Mating Part
Yes
Plating min - Mating
0.381µm
Current - Maximum per Contact
8.5A
Polarized to PCB
Yes
Material - Plating Mating
Gold
Max-Duration
5
Durability (mating cycles max)
30
PCB Retention
Yes
CSA
LR19980
Max-Cycle
1
Pitch - Mating Interface
3.00mm
PCB Locator
Yes
Orientation
Vertical
Material - Plating Termination
Tin
