  9. Rectangular Power Connector, 14 Contact(S), Male, Press Fit Terminal, Receptacle
This item is Discontinued.

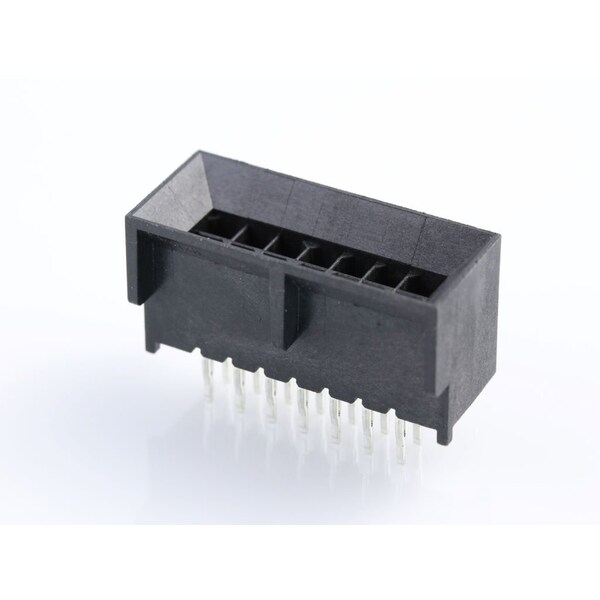

Molex Rectangular Power Connector, 14 Contact(S), Male, Press Fit Terminal, Receptacle 452801401

Rectangular Power Connector, 14 Contact(S), Male, Press Fit Terminal, Receptacle (Discontinued)

  • Mfr # 452801401
  • Zoro # G105909885
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
452801401
Zoro #
G105909885
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
5.08 µm
PC Tail Length
4.80mm

Details

Color
Black
Number of Rows
2
Series
45280
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
Hole Center to Center
3 mm
Material
High Temperature Thermoplastic
Terminal Type
Through Hole - Compliant Pin
Standards
CSA Certified; UL E29179
Max. Temp.
105°C
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Current Rating
8.5 A
Number of Contacts
14
Contact Finish
Tin Plated
Material - Resin
High Temperature Thermoplastic
Material - Metal
High Performance Alloy (HPA)
PCB Locator
Yes
Orientation
Vertical
Material - Plating Mating
Tin
Temperature Range - Operating
-40° to +105°C
Plating min - Mating
5.080µm
Circuits (Loaded)
14
Glow-Wire Capable
No
Lock to Mating Part
None
Material - Plating Termination
Tin
Stackable
No
PCB Retention
Yes
Current - Maximum per Contact
8.5A
Component Type
PCB Header
Breakaway
No
Shrouded
Fully
Guide to Mating Part
Yes
Product Name
Micro-Fit BMI CPI
Pitch - Mating Interface
3.00mm
Polarized to Mating Part
Yes
UL
E29179
Flammability
94V-0
CSA
LR19980
Polarized to PCB
Yes
Durability (mating cycles max)
30
