  9. Rectangular Power Connector, 14 Contact(S), Male, Solder Terminal, Receptacle

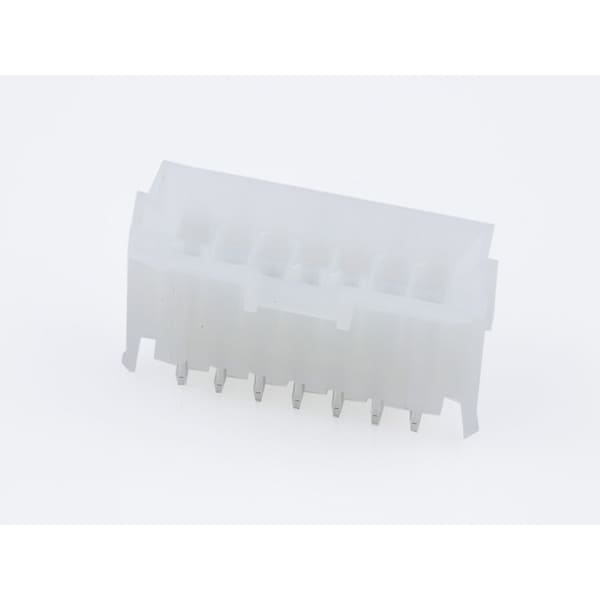

Molex Rectangular Power Connector, 14 Contact(S), Male, Solder Terminal, Receptacle 15246141 - main

Rectangular Power Connector, 14 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 15246141

  • Zoro # G405909981

product price: $2.69
/ea
Sold in multiples of 40 for $107.60

Key Features

Color
Natural
Number of Rows
2
Series
42440
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
15246141
Zoro #
G405909981
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
2.54 µm
PC Tail Length
3.56mm
PCB Thickness - Recommended
1.80mm

Details

Color
Natural
Number of Rows
2
Series
42440
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
Terminal Type
Through Hole
Hole Center to Center
4.2 mm
Material
Nylon
Max. Temp.
240°C
Standards
CSA Certified; UL E29179
Number of Contacts
14
Flammability Rating
UL 94V-2
Current Rating
13 A
Contact Finish
Tin Plated
Terminal Finish
Tin Plated
Current - Maximum per Contact
13.0A
Max-Cycle
1
Flammability
94V-2
Lock to Mating Part
Yes
Circuits (Loaded)
14
Material - Plating Mating
Tin
UL
E29179
CSA
LR19980
Breakaway
No
PCB Locator
Yes
Polarized to Mating Part
Yes
Max-Duration
5
Orientation
Vertical
Product Name
Mini-Fit BMI
Stackable
No
Temperature Range - Operating
-40° to +105°C
Component Type
PCB Header
Shrouded
Partial
Polarized to PCB
Yes
Material - Resin
Nylon
Durability (mating cycles max)
30
PCB Retention
Yes
Max-Temp
240
Material - Plating Termination
Tin
Pitch - Mating Interface
4.20mm
Plating min - Mating
2.540µm
Guide to Mating Part
Yes
Material - Metal
Brass
Glow-Wire Capable
No
