  9. Rectangular Power Connector, 14 Contact(S), Male, Solder Terminal, Receptacle
This item is Discontinued.

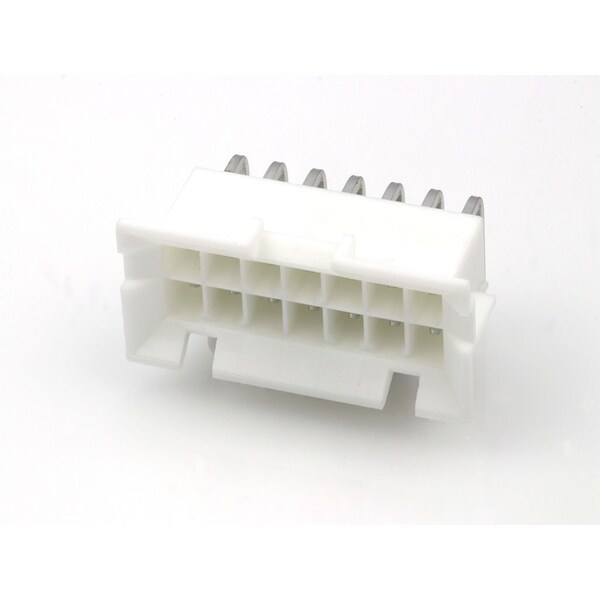

Molex Rectangular Power Connector, 14 Contact(S), Male, Solder Terminal, Receptacle 15249144

Rectangular Power Connector, 14 Contact(S), Male, Solder Terminal, Receptacle (Discontinued)

  • Mfr # 15249144
  • Zoro # G205910224
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
15249144
Zoro #
G205910224
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
2.54 µm
PC Tail Length
3.30mm
PCB Thickness - Recommended
1.80mm

Details

Color
Natural
Number of Rows
2
Series
42404
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
Hole Center to Center
4.2 mm
Material
Nylon
Terminal Type
Through Hole
Standards
CSA Certified; UL E29179
Max. Temp.
240°C
Contact Finish
Tin Plated
Number of Contacts
14
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Current Rating
13 A
Current - Maximum per Contact
13.0A
Material - Metal
Brass
Flammability
94V-0
Pitch - Mating Interface
4.20mm
Product Name
Mini-Fit BMI
Material - Plating Termination
Tin
Lock to Mating Part
Yes
Guide to Mating Part
Yes
Durability (mating cycles max)
30
Max-Duration
5
Material - Resin
Nylon
Glow-Wire Capable
No
Color - Resin
Natural (White)
Material - Plating Mating
Tin
Shrouded
Partial
Breakaway
No
UL
E29179
Circuits (Loaded)
14
Orientation
Right Angle
Polarized to Mating Part
Yes
PCB Retention
Yes
Max-Temp
240
PCB Locator
Yes
Stackable
No
Polarized to PCB
Yes
Temperature Range - Operating
-40° to +105°C
Component Type
PCB Header
Max-Cycle
1
Plating min - Mating
2.540µm
CSA
LR19980
