  9. Rectangular Power Connector, 14 Contact(S), Male, Solder Terminal, Receptacle
This item is Discontinued.

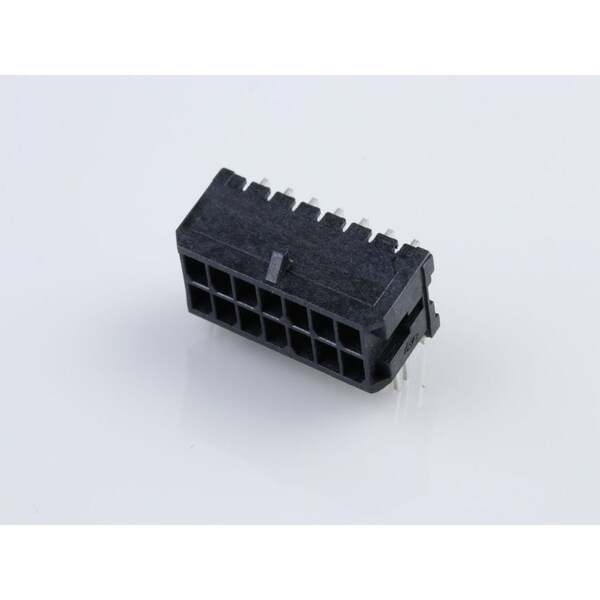

Molex Rectangular Power Connector, 14 Contact(S), Male, Solder Terminal, Receptacle 430451421

Rectangular Power Connector, 14 Contact(S), Male, Solder Terminal, Receptacle (Discontinued)

  • Mfr # 430451421
  • Zoro # G405910598
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
430451421
Zoro #
G405910598
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.254 µm
Mated Height
10.06mm
PCB Thickness - Recommended
1.60mm

Details

Color
Black
Number of Rows
2
Series
43045
Max. Voltage
600V
Application
Power, Wire-to-Board
Hole Center to Center
3 mm
Standards
CSA Certified; UL E29179
Terminal Type
Through Hole
Material
High Temperature Thermoplastic
Max. Temp.
260°C
Features
Glow-Wire Capable; Surface Mount Compatible
Number of Contacts
14
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Current Rating
8.5 A
Contact Finish
Tin Plated
Durability (mating cycles max)
30
UL
E29179
Breakaway
No
Material - Resin
High Temperature Thermoplastic
Orientation
Right Angle
Max-Temp
260
Stackable
No
Plating min - Mating
0.254µm
Max-Duration
30
Current - Maximum per Contact
8.5A
Temperature Range - Operating
-40° to +105°C
Circuits (Loaded)
14
Glow-Wire Capable
Yes
Pitch - Mating Interface
3.00mm
Polarized to PCB
Yes
Material - Plating Termination
Tin
CSA
LR19980
Material - Metal
Brass
PCB Retention
Yes
Shrouded
Fully
Product Name
Micro-Fit 3.0
Component Type
PCB Header
Material - Plating Mating
Tin
PCB Locator
Yes
Flammability
94V-0
Max-Cycle
3
