  9. Rectangular Power Connector, 14 Contact(S), Male, Solder Terminal, Receptacle

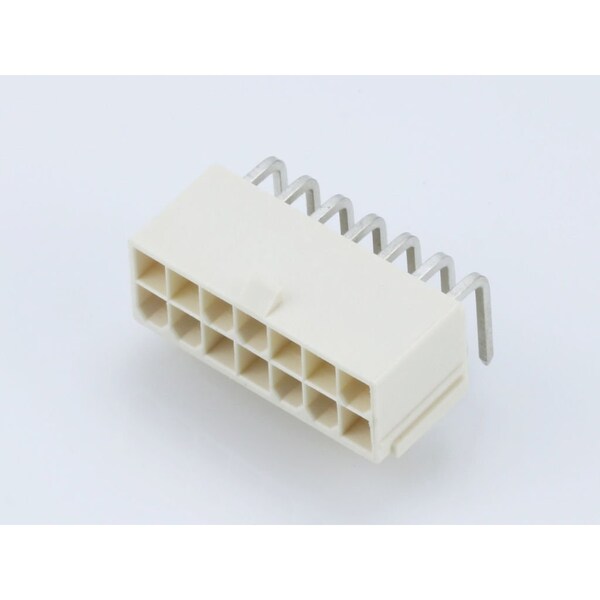

Molex Rectangular Power Connector, 14 Contact(S), Male, Solder Terminal, Receptacle 874271402 - main

Rectangular Power Connector, 14 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 874271402

  • Zoro # G705911561

product price: $3.45
/ea
Sold in multiples of 2400 for $8,280.00

Key Features

Color
Beige
Number of Rows
2
Series
87427
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
874271402
Zoro #
G705911561
UPC #
-
Country of Origin
India

Dimensions

Contact Plating Thickness
2.54 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
3.30mm

Details

Color
Beige
Number of Rows
2
Series
87427
Max. Voltage
600V
Application
Power, Wire-to-Board
Max. Temp.
260°C
Standards
CSA Certified; UL E29179
Terminal Type
Through Hole
Material
Nylon
Hole Center to Center
4.2 mm
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Contact Finish
Tin Plated
Number of Contacts
14
Current Rating
13 A
Material - Plating Termination
Tin
Max-Cycle
1
Polarized to Mating Part
Yes
Durability (mating cycles max)
30
Polarized to PCB
No
Shrouded
Fully
Temperature Range - Operating
-40° to +105°C
Max-Temp
260
Material - Resin
Nylon
Glow-Wire Capable
No
Plating min - Mating
2.540µm
Material - Plating Mating
Tin
Stackable
No
Lock to Mating Part
Yes
Material - Metal
Brass
First Mate / Last Break
No
Breakaway
No
Pitch - Mating Interface
4.20mm
Current - Maximum per Contact
13.0A
Flammability
94V-0
Component Type
PCB Header
PCB Retention
None
Product Name
Mini-Fit Jr.
PCB Locator
No
Orientation
Right Angle
Circuits (Loaded)
14
Max-Duration
5
CSA
LR19980
UL
E29179
