  9. Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Plug
This item is Discontinued.

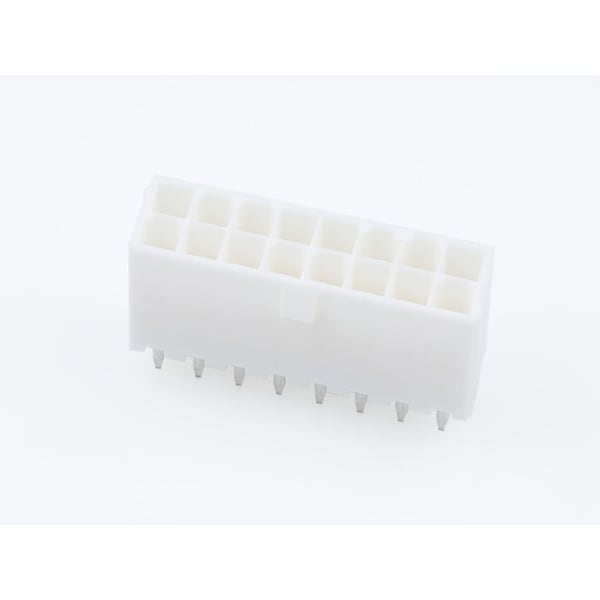

Molex Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Plug 39310168

Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Plug (Discontinued)

  • Mfr # 39310168
  • Zoro # G005910806
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
39310168
Zoro #
G005910806
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
3.50mm

Details

Color
Natural
Number of Rows
2
Series
5566
Max. Voltage
600V
Application
Power, Wire-to-Board
Material
Nylon
Standards
CSA Certified; UL E29179
Terminal Type
Through Hole
Hole Center to Center
4.2 mm
Max. Temp.
260°C
Terminal Finish
Matte Tin Plated
Current Rating
9 A
Flammability Rating
UL 94V-0
Number of Contacts
16
Contact Finish
Gold Plated
Current - Maximum per Contact
9.0A
Material - Plating Termination
Matte Tin
Keying to Mating Part
None
Temperature Range - Operating
-40° to +105°C
First Mate / Last Break
No
CSA
LR19980
Max-Cycle
1
Max-Duration
5
Breakaway
No
Material - Plating Mating
Gold
Material - Metal
Brass
PCB Locator
Yes
Pitch - Mating Interface
4.20mm
Lock to Mating Part
Yes
Shrouded
Fully
Circuits (Loaded)
16
Flammability
94V-0
Max-Temp
260
Plating min - Mating
0.762µm
Orientation
Vertical
Stackable
No
Product Name
Mini-Fit Jr.
UL
E29179
PCB Retention
None
Component Type
PCB Header
Guide to Mating Part
No
Polarized to PCB
Yes
Glow-Wire Capable
No
Durability (mating cycles max)
30
Polarized to Mating Part
Yes
Material - Resin
Nylon
