  9. Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Receptacle

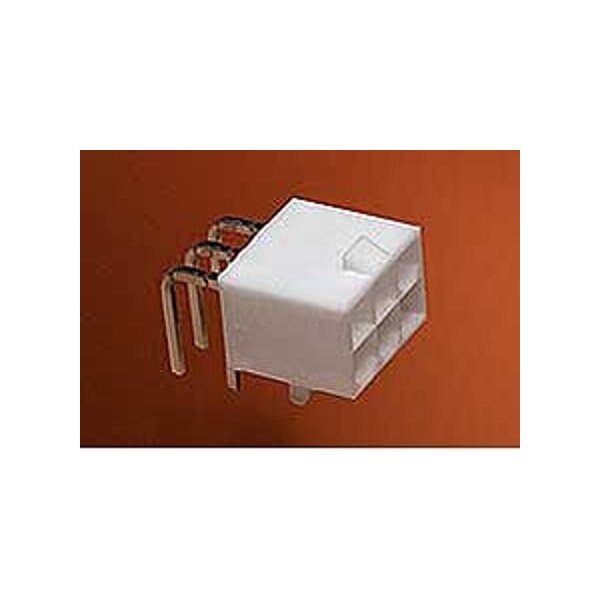

Molex Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Receptacle 39291167 - main

Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 39291167

  • Zoro # G405910529

product price: $3.25
/ea
Sold in multiples of 30 for $97.50

Key Features

Color
Natural
Number of Rows
2
Series
5569
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
39291167
Zoro #
G405910529
UPC #
-
Country of Origin
China

Dimensions

Contact Plating Thickness
2.54 µm
PCB Thickness - Recommended
1.78mm

Details

Color
Natural
Number of Rows
2
Series
5569
Max. Voltage
600V
Application
Power, Wire-to-Board
Hole Center to Center
4.2 mm
Terminal Type
Through Hole
Standards
CSA Certified; UL E29179
Material
Nylon
Max. Temp.
260°C
Current Rating
13 A
Contact Finish
Matte Tin Plated
Flammability Rating
UL 94V-0
Terminal Finish
Matte Tin Plated
Number of Contacts
16
Stackable
No
Material - Metal
Brass
CSA
LR19980
Polarized to Mating Part
Yes
Flammability
94V-0
PCB Retention
Yes
Temperature Range - Operating
-40° to +105°C
Guide to Mating Part
No
Material - Plating Mating
Matte Tin
Max-Cycle
1
Glow-Wire Capable
No
Breakaway
No
Pitch - Mating Interface
4.20mm
Keying to Mating Part
None
UL
E29179
Current - Maximum per Contact
13.0A
Material - Resin
Nylon
Max-Temp
260
Component Type
PCB Header
Max-Duration
5
Durability (mating cycles max)
30
Shrouded
Fully
Orientation
Right Angle
Material - Plating Termination
Matte Tin
Product Name
Mini-Fit Jr.
Lock to Mating Part
Yes
Polarized to PCB
Yes
First Mate / Last Break
No
PCB Locator
Yes
Circuits (Loaded)
16
Plating min - Mating
2.540µm
