Shop MOLEX

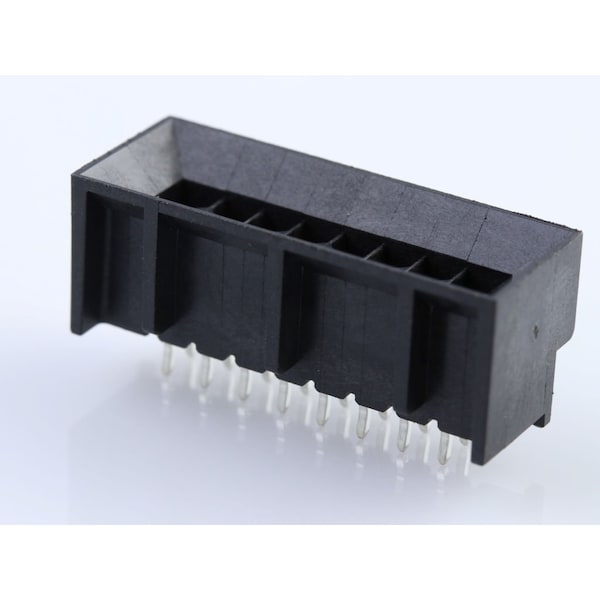

Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 444321601

  • Zoro # G605910763

product price:
$
4.29
/ea
Sold in multiples of 840 for $3,603.60

Key Features

Color
Black
Number of Rows
2
Series
44432
Max. Voltage
250V AC/DC
Application
Board-to-Board, Power, Wire-to-Board
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
444321601
Zoro #
G605910763
UPC #
-
Country of Origin
United States
Color
Black
Number of Rows
2
Series
44432
Max. Voltage
250V AC/DC
Application
Board-to-Board, Power, Wire-to-Board
Max. Temp.
260°C
Hole Center to Center
3 mm
Standards
CSA Certified; UL E29179
Terminal Type
Through Hole
Material
High Temperature Thermoplastic
Contact Finish
Tin Plated
Number of Contacts
16
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Current Rating
8.5 A
Orientation
Vertical
Stackable
No
Product Name
Micro-Fit BMI
Max-Temp
260
Glow-Wire Capable
No
Circuits (Loaded)
16
CSA
LR19980
Shrouded
Fully
Material - Metal
Brass
Plating min - Mating
5.080µm
Polarized to Mating Part
Yes
Current - Maximum per Contact
8.5A
Flammability
94V-0
Temperature Range - Operating
-40° to +105°C
PCB Locator
Yes
Max-Cycle
1
Material - Plating Termination
Tin
Material - Resin
Nylon
Component Type
PCB Header
Material - Plating Mating
Tin
Pitch - Mating Interface
3.00mm
Breakaway
No
PCB Retention
Yes
Max-Duration
5
Polarized to PCB
Yes
Durability (mating cycles max)
30
UL
E29179
Voltage - Maximum
250V AC (RMS)/DC
