  9. Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Receptacle
This item is Discontinued.

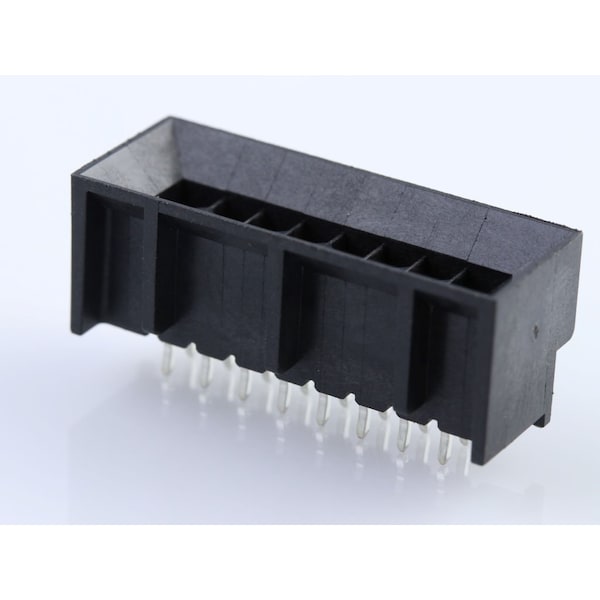

Molex Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Receptacle 444321602

Rectangular Power Connector, 16 Contact(S), Male, Solder Terminal, Receptacle (Discontinued)

  • Mfr # 444321602
  • Zoro # G205910781
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
444321602
Zoro #
G205910781
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.381 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
3.30mm

Details

Color
Black
Number of Rows
2
Series
44432
Max. Voltage
250V AC/DC
Application
Board-to-Board, Power, Wire-to-Board
Max. Temp.
260°C
Hole Center to Center
3 mm
Material
High Temperature Thermoplastic
Standards
CSA Certified; UL E29179
Terminal Type
Through Hole
Number of Contacts
16
Current Rating
8.5 A
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Contact Finish
Gold Plated
Glow-Wire Capable
No
Component Type
PCB Header
Polarized to Mating Part
Yes
Flammability
94V-0
Temperature Range - Operating
-40° to +105°C
Max-Cycle
1
Material - Plating Termination
Tin
Pitch - Mating Interface
3.00mm
Stackable
No
Shrouded
Fully
Current - Maximum per Contact
8.5A
Durability (mating cycles max)
30
UL
E29179
Circuits (Loaded)
16
PCB Locator
Yes
Material - Metal
Brass
Material - Plating Mating
Gold
Material - Resin
Nylon
Max-Temp
260
Product Name
Micro-Fit BMI
Max-Duration
5
Voltage - Maximum
250V AC (RMS)/DC
CSA
LR19980
Orientation
Vertical
Plating min - Mating
0.381µm
Polarized to PCB
Yes
Breakaway
No
PCB Retention
Yes
