  5. Rectangular Power Connector, 18 Contact(S), Female, Solder Terminal, Receptacle

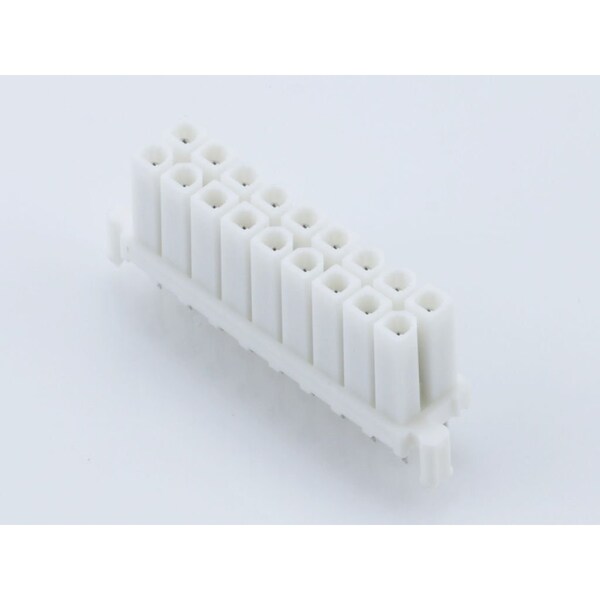

Molex Rectangular Power Connector, 18 Contact(S), Female, Solder Terminal, Receptacle 15247181 - main

Rectangular Power Connector, 18 Contact(S), Female, Solder Terminal, Receptacle

  • Mfr # 15247181

  • Zoro # G905910012

product price:  $3.69
/ea
Sold in multiples of 22 for $81.18

Key Features

Color
Natural
Number of Rows
2
Series
42385
Max. Voltage
600V AC/DC
Application
Board-to-Board, Power, Wire-to-Board
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
15247181
Zoro #
G905910012
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.20mm

Details

Color
Natural
Number of Rows
2
Series
42385
Max. Voltage
600V AC/DC
Application
Board-to-Board, Power, Wire-to-Board
Material
Nylon
Terminal Type
Through Hole
Hole Center to Center
4.2 mm
Standards
CSA Certified; UL E29179
Max. Temp.
240°C
Flammability Rating
UL 94V-0
Current Rating
9 A
Contact Finish
Tin Plated
Number of Contacts
18
Polarized to Mating Part
Yes
Keying to Mating Part
None
Glow-Wire Capable
No
Temperature Range - Operating
-40° to +105°C
Material - Resin
Nylon
Flammability
94V-0
Current - Maximum per Contact
9.0A
UL
E29179
Voltage - Maximum
600V AC (RMS)/DC
Orientation
Vertical
Product Name
Mini-Fit BMI
Material - Metal
Brass
Max-Duration
5
Durability (mating cycles max)
30
Pitch - Mating Interface
4.20mm
PCB Locator
Yes
Grounding to PCB
No
Max-Cycle
1
Polarized to PCB
Yes
Color - Resin
Natural (White)
Max-Temp
240
PCB Retention
Yes
Material - Plating Mating
Tin
Lock to Mating Part
None
Component Type
PCB Receptacle
CSA
LR19980
Guide to Mating Part
Yes
Circuits (Loaded)
18
