  9. Rectangular Power Connector, 18 Contact(S), Male, Solder Terminal, Plug

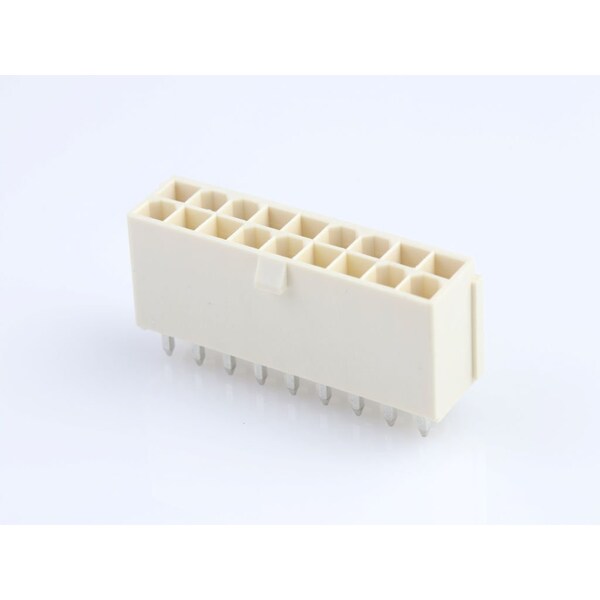

Molex Rectangular Power Connector, 18 Contact(S), Male, Solder Terminal, Plug 874271842 - main

Rectangular Power Connector, 18 Contact(S), Male, Solder Terminal, Plug

  • Mfr # 874271842

  • Zoro # G205911627

product price: $2.75
/ea
Sold in multiples of 35 for $96.25

Key Features

Color
Beige
Number of Rows
2
Series
87427
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
874271842
Zoro #
G205911627
UPC #
-
Country of Origin
India

Dimensions

Contact Plating Thickness
2.54 µm
PC Tail Length
3.30mm
PCB Thickness - Recommended
1.60mm

Details

Color
Beige
Number of Rows
2
Series
87427
Max. Voltage
600V
Application
Power, Wire-to-Board
Material
Nylon
Hole Center to Center
4.2 mm
Terminal Type
Through Hole
Standards
CSA Certified; UL E29179
Max. Temp.
260°C
Flammability Rating
UL 94V-0
Number of Contacts
18
Contact Finish
Tin Plated
Terminal Finish
Tin Plated
Current Rating
13 A
Max-Temp
260
Circuits (Loaded)
18
Current - Maximum per Contact
13.0A
PCB Retention
None
Material - Metal
Brass
Product Name
Mini-Fit Jr.
Material - Plating Mating
Tin
Orientation
Vertical
Component Type
PCB Header
Flammability
94V-0
Polarized to PCB
No
Stackable
No
UL
E29179
Max-Duration
5
Pitch - Mating Interface
4.20mm
Temperature Range - Operating
-40° to +105°C
PCB Locator
No
Glow-Wire Capable
No
Durability (mating cycles max)
30
Lock to Mating Part
Yes
Material - Plating Termination
Tin
First Mate / Last Break
No
Material - Resin
Nylon
Breakaway
No
Shrouded
Fully
Max-Cycle
1
CSA
LR19980
Plating min - Mating
2.540µm
Polarized to Mating Part
Yes
