  9. Rectangular Power Connector, 18 Contact(S), Male, Solder Terminal, Receptacle
This item is Discontinued.

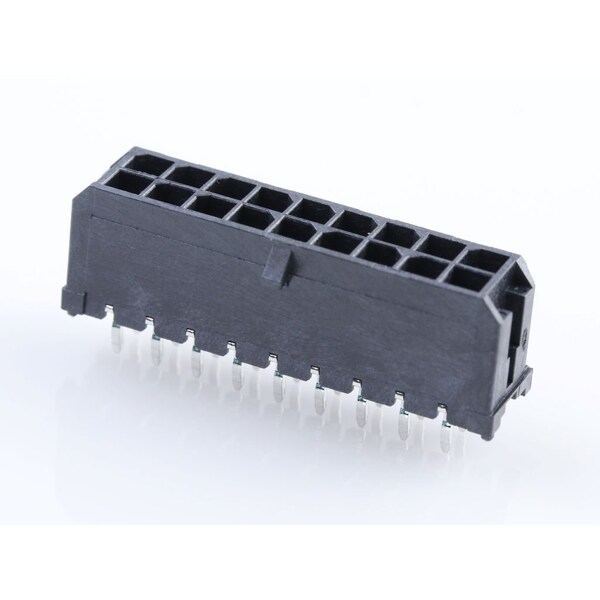

Molex Rectangular Power Connector, 18 Contact(S), Male, Solder Terminal, Receptacle 430451813

Rectangular Power Connector, 18 Contact(S), Male, Solder Terminal, Receptacle (Discontinued)

  • Mfr # 430451813
  • Zoro # G305910599
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
430451813
Zoro #
G305910599
UPC #
-
Country of Origin
China

Dimensions

Contact Plating Thickness
0.381 µm
Mated Height
17.64mm
PCB Thickness - Recommended
1.60mm

Details

Color
Black
Number of Rows
2
Series
43045
Max. Voltage
600V
Application
Power, Wire-to-Board
Hole Center to Center
3 mm
Features
Glow-Wire Capable; Surface Mount Compatible
Terminal Type
Through Hole - Kinked Pin
Standards
CSA Certified; UL E29179
Material
High Temperature Thermoplastic
Max. Temp.
260°C
Contact Finish
Gold Plated
Terminal Finish
Tin Plated
Number of Contacts
18
Flammability Rating
UL 94V-0
Current Rating
8.5 A
Max-Duration
30
Polarized to PCB
Yes
Temperature Range - Operating
-40° to +125°C
Material - Metal
Brass
Plating min - Mating
0.381µm
CSA
LR19980
Circuits (Loaded)
18
Max-Temp
260
Material - Plating Mating
Gold
Current - Maximum per Contact
8.5A
Glow-Wire Capable
Yes
UL
E29179
Flammability
94V-0
Stackable
No
Max-Cycle
3
Pitch - Mating Interface
3.00mm
Breakaway
No
Durability (mating cycles max)
30
Material - Plating Termination
Tin
PCB Retention
Yes
PCB Locator
Yes
Material - Resin
High Temperature Thermoplastic
Product Name
Micro-Fit 3.0
Orientation
Vertical
Component Type
PCB Header
Shrouded
Fully
