  9. Rectangular Power Connector, 18 Contact(S), Male, Solder Terminal, Receptacle

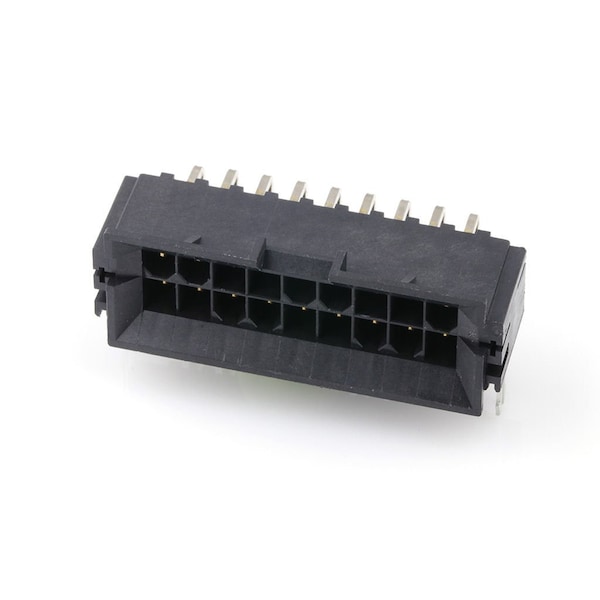

Molex Rectangular Power Connector, 18 Contact(S), Male, Solder Terminal, Receptacle 438100063 - main

Rectangular Power Connector, 18 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 438100063

  • Zoro # G005910059

product price: $16.59
/ea
Sold in multiples of 5 for $82.95

Key Features

Color
Black
Number of Rows
2
Series
43810
Max. Voltage
600V AC/DC
Application
Board-to-Board, Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
438100063
Zoro #
G005910059
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.762 µm
PC Tail Length
3.63mm
PCB Thickness - Recommended
2.39mm (.094")

Details

Color
Black
Number of Rows
2
Series
43810
Max. Voltage
600V AC/DC
Application
Board-to-Board, Power, Wire-to-Board
Hole Center to Center
4.2 mm
Max. Temp.
260°C
Material
High Temperature Thermoplastic
Features
Surface Mount Compatible
Standards
CSA Certified; UL E29179
Terminal Type
Through Hole
Contact Finish
Gold Plated
Number of Contacts
18
Current Rating
13 A
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Plating min - Mating
0.762µm
Glow-Wire Capable
No
Shrouded
Fully
Polarized to Mating Part
Yes
UL
E29179
Material - Resin
High Temperature Thermoplastic
Material - Metal
Brass
Temperature Range - Operating
-40° to +105°C
Max-Duration
5
Orientation
Right Angle
CSA
LR19980
Component Type
PCB Header
Product Name
Mini-Fit BMI
Polarized to PCB
Yes
PCB Retention
Yes
PCB Locator
No
Breakaway
No
Stackable
No
Max-Cycle
1
Circuits (Loaded)
18
Current - Maximum per Contact
13.0A
Flammability
94V-0
Pitch - Mating Interface
4.20mm
Max-Temp
260
Durability (mating cycles max)
30
Voltage - Maximum
600V AC (RMS)/DC
Material - Plating Termination
Tin
Material - Plating Mating
Gold
