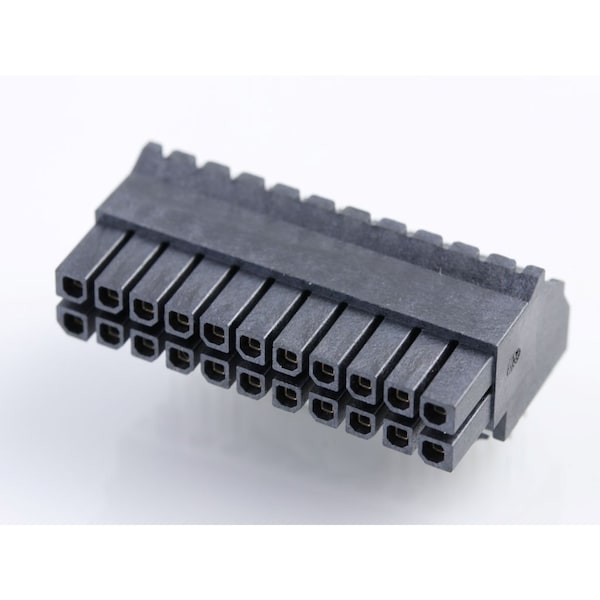

Rectangular Power Connector, 22 Contact(S), Female, Solder Terminal, Receptacle

  • Mfr # 447642203

  • Zoro # G005910431

product price:
$
11.19
/ea
Sold in multiples of 10 for $111.90

Key Features

Number of Rows
2
Series
44764
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
Standards
CSA Certified; UL E29179
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
447642203
Zoro #
G005910431
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.60mm

Details

Number of Rows
2
Series
44764
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
Standards
CSA Certified; UL E29179
Features
Surface Mount Compatible
Material
Phosphor Bronze
Terminal Type
Through Hole
Max. Temp.
260°C
Hole Center to Center
3 mm
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Contact Finish
Gold Plated
Number of Contacts
22
Current Rating
8.5 A
Current - Maximum per Contact
8.5A
PCB Locator
Yes
Glow-Wire Capable
No
Durability (mating cycles max)
30
Component Type
PCB Receptacle
Plating min - Mating
0.762µm
Max-Temp
260
Max-Duration
5
CSA
LR19980
Pitch - Mating Interface
3.00mm
Circuits (Loaded)
22
Polarized to PCB
Yes
Flammability
94V-0
Orientation
Right Angle
PCB Retention
Yes
Material - Plating Mating
Gold
Material - Plating Termination
Tin
Temperature Range - Operating
-40° to +105°C
UL
E29179
Product Name
Micro-Fit BMI
Max-Cycle
1
