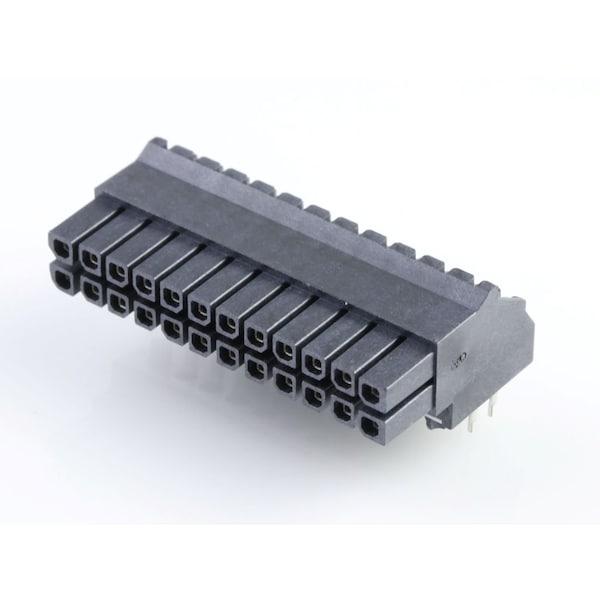

Rectangular Power Connector, 24 Contact(S), Female, Solder Terminal, Receptacle

  • Mfr # 447642401

  • Zoro # G105910447

product price:
$
7.39
/ea
Sold in multiples of 10 for $73.90

Key Features

Number of Rows
2
Series
44764
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
Max. Temp.
260°C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
447642401
Zoro #
G105910447
UPC #
-
Country of Origin
United States
Number of Rows
2
Series
44764
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
Max. Temp.
260°C
Material
Phosphor Bronze
Hole Center to Center
3 mm
Features
Surface Mount Compatible
Standards
CSA Certified; UL E29179
Terminal Type
Through Hole
Contact Finish
Tin Plated
Terminal Finish
Tin Plated
Number of Contacts
24
Flammability Rating
UL 94V-0
Current Rating
8.5 A
Flammability
94V-0
CSA
LR19980
PCB Retention
Yes
Max-Temp
260
Max-Duration
5
Plating min - Mating
1.016µm
PCB Locator
Yes
Durability (mating cycles max)
30
Product Name
Micro-Fit BMI
Material - Plating Mating
Tin
Polarized to PCB
Yes
Temperature Range - Operating
-40° to +105°C
Component Type
PCB Receptacle
Orientation
Right Angle
Pitch - Mating Interface
3.00mm
Max-Cycle
1
Current - Maximum per Contact
8.5A
Circuits (Loaded)
24
Material - Plating Termination
Tin
Glow-Wire Capable
No
UL
E29179
