  9. Rectangular Power Connector, 24 Contact(S), Male, Solder Terminal, Plug

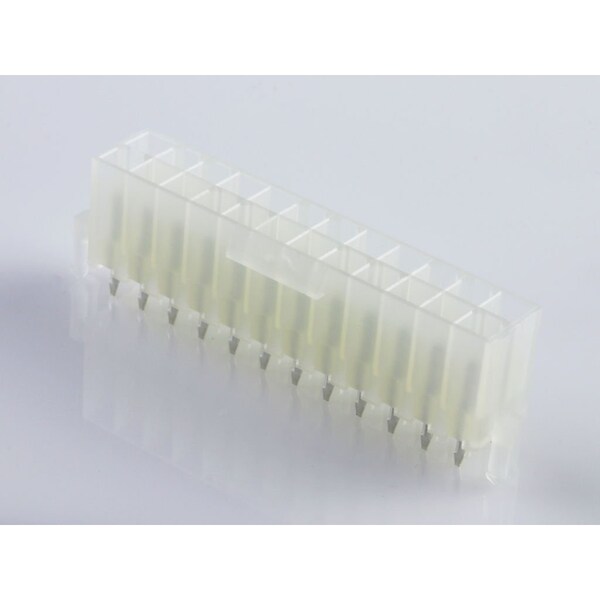

Molex Rectangular Power Connector, 24 Contact(S), Male, Solder Terminal, Plug 442060001 - main

Rectangular Power Connector, 24 Contact(S), Male, Solder Terminal, Plug

  • Mfr # 442060001

  • Zoro # G705910434

product price: $1.75
/ea
Sold in multiples of 51 for $89.25

Key Features

Color
Natural
Number of Rows
2
Series
44206
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
442060001
Zoro #
G705910434
UPC #
-
Country of Origin
China

Dimensions

Contact Plating Thickness
0.889 µm
PC Tail Length
3.30mm
PCB Thickness - Recommended
1.80mm

Details

Color
Natural
Number of Rows
2
Series
44206
Max. Voltage
600V
Application
Power, Wire-to-Board
Material
Nylon
Standards
UL E29179
Terminal Type
Through Hole
Max. Temp.
105°C
Hole Center to Center
4.2 mm
Flammability Rating
UL 94V-2
Current Rating
13 A
Terminal Finish
Tin Plated
Number of Contacts
24
Contact Finish
Tin Plated
Current - Maximum per Contact
13.0A
Material - Resin
Nylon
Circuits (Loaded)
24
Material - Metal
Brass
Glow-Wire Capable
No
Pitch - Mating Interface
4.20mm
Flammability
94V-2
Product Name
Mini-Fit Jr.
PCB Retention
Yes
Breakaway
No
Shrouded
Fully
Temperature Range - Operating
-40° to +105°C
Material - Plating Termination
Tin
Lock to Mating Part
Yes
Component Type
PCB Header
Material - Plating Mating
Tin
Orientation
Vertical
Stackable
No
Keying to Mating Part
Yes
Plating min - Mating
0.889µm
Guide to Mating Part
Yes
UL
E29179
Polarized to PCB
Yes
Durability (mating cycles max)
30
First Mate / Last Break
No
PCB Locator
Yes
