  9. Rectangular Power Connector, 24 Contact(S), Male, Solder Terminal, Plug
This item is Discontinued.

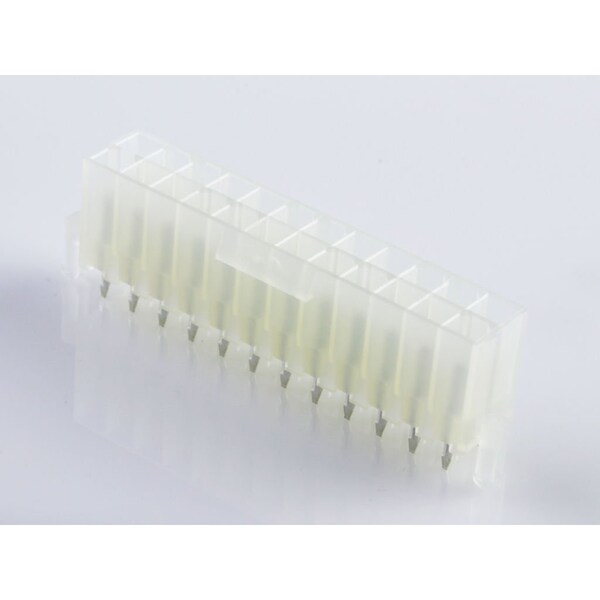

Molex Rectangular Power Connector, 24 Contact(S), Male, Solder Terminal, Plug 442060007

Rectangular Power Connector, 24 Contact(S), Male, Solder Terminal, Plug (Discontinued)

  • Mfr # 442060007
  • Zoro # G205910675
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
442060007
Zoro #
G205910675
UPC #
-
Country of Origin
China

Dimensions

Contact Plating Thickness
0.889 µm
PC Tail Length
3.30mm
PCB Thickness - Recommended
1.80mm

Details

Color
Natural
Number of Rows
2
Series
44206
Max. Voltage
600V
Application
Power, Wire-to-Board
Hole Center to Center
4.2 mm
Max. Temp.
105°C
Material
Nylon
Terminal Type
Through Hole
Standards
UL E29179
Number of Contacts
24
Terminal Finish
Tin Plated
Contact Finish
Tin Plated
Flammability Rating
UL 94V-2
Current Rating
13 A
PCB Retention
Yes
Component Type
PCB Header
Material - Metal
Brass
Pitch - Mating Interface
4.20mm
PCB Locator
Yes
Current - Maximum per Contact
13.0A
Material - Plating Mating
Tin
Plating min - Mating
0.889µm
Guide to Mating Part
Yes
Keying to Mating Part
Yes
Glow-Wire Capable
No
Temperature Range - Operating
-40° to +105°C
Polarized to PCB
Yes
Breakaway
No
Lock to Mating Part
Yes
Orientation
Vertical
Material - Resin
Nylon
Durability (mating cycles max)
30
UL
E29179
Material - Plating Termination
Tin
First Mate / Last Break
No
Shrouded
Fully
Stackable
No
Circuits (Loaded)
24
Product Name
Mini-Fit Jr.
Flammability
94V-2
