  9. Rectangular Power Connector, 24 Contact(S), Male, Solder Terminal, Receptacle
This item is Discontinued.

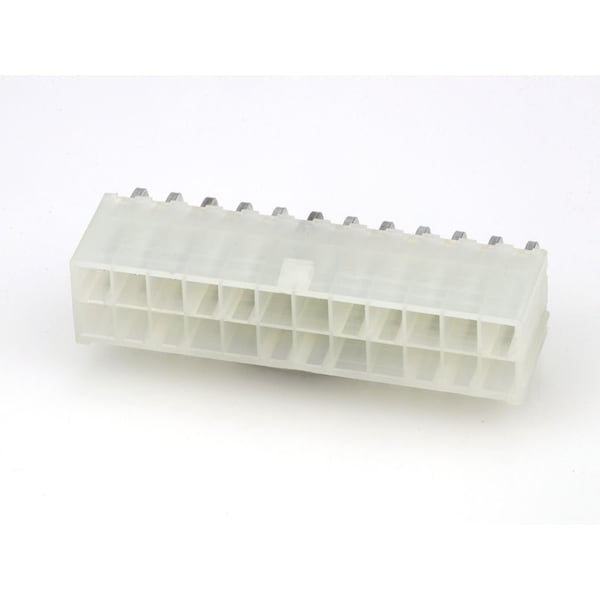

Molex Rectangular Power Connector, 24 Contact(S), Male, Solder Terminal, Receptacle 353182420

Rectangular Power Connector, 24 Contact(S), Male, Solder Terminal, Receptacle (Discontinued)

  • Mfr # 353182420
  • Zoro # G005911056
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
353182420
Zoro #
G005911056
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Contact Plating Thickness
5.08 µm
PC Tail Length
4.00mm
PCB Thickness - Recommended
1.60mm

Details

Color
Natural
Number of Rows
2
Series
35318
Max. Voltage
250V
Application
Power, Wire-to-Board
Hole Center to Center
4.2 mm
Max. Temp.
105°C
Terminal Type
Through Hole
Standards
CSA Certified; UL E29179
Material
Nylon
Current Rating
13 A
Number of Contacts
24
Terminal Finish
Tin Plated
Contact Finish
Tin Plated
Flammability Rating
UL 94V-2
CSA
LR19980
Pitch - Mating Interface
4.20mm
Material - Plating Termination
Tin
Stackable
No
First Mate / Last Break
No
Material - Plating Mating
Tin
Glow-Wire Capable
No
Component Type
PCB Header
UL
E29179
Current - Maximum per Contact
13.0A
Lock to Mating Part
Yes
Polarized to PCB
No
Flammability
94V-2
Orientation
Right Angle
PCB Locator
No
Plating min - Mating
5.080µm
Product Name
Mini-Fit
Breakaway
No
Durability (mating cycles max)
30
PCB Retention
None
Material - Resin
Nylon
Keying to Mating Part
None
Shrouded
Partial
Circuits (Loaded)
24
Temperature Range - Operating
-40° to +105°C
Guide to Mating Part
No
