  9. Rectangular Power Connector, 24 Contact(S), Male, Solder Terminal, Receptacle
This item is Discontinued.

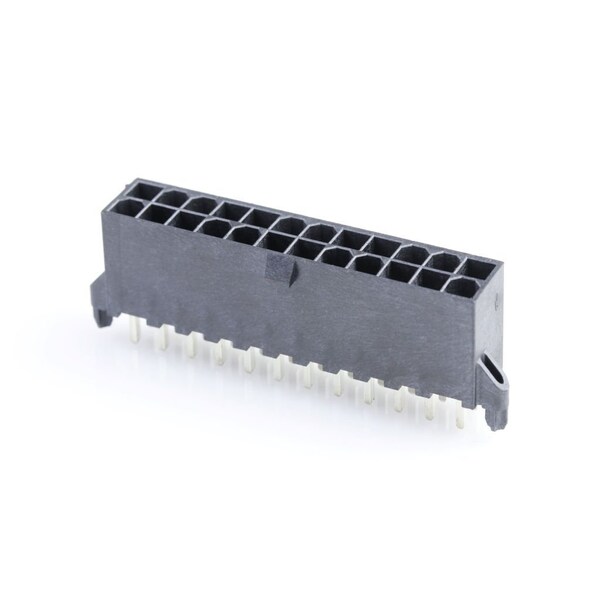

Molex Rectangular Power Connector, 24 Contact(S), Male, Solder Terminal, Receptacle 462070224

Rectangular Power Connector, 24 Contact(S), Male, Solder Terminal, Receptacle (Discontinued)

  • Mfr # 462070224
  • Zoro # G705910366
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
462070224
Zoro #
G705910366
UPC #
-
Country of Origin
Mexico

Dimensions

PC Tail Length
5.26mm
PCB Thickness - Recommended
3.18mm

Details

Color
Black
Number of Rows
2
Series
46207
Max. Voltage
600V AC/DC
Application
Board-to-Board, Power, Wire-to-Board
Hole Center to Center
4.2 mm
Features
Glow-Wire Capable; Surface Mount Compatible
Terminal Type
Through Hole
Max. Temp.
265°C
Material
High Temperature Thermoplastic
Standards
CSA Certified; UL E29179
Current Rating
13 A
Contact Finish
Matte Tin Plated
Flammability Rating
UL 94V-0
Number of Contacts
24
Terminal Finish
Matte Tin Plated
Component Type
PCB Header
Orientation
Vertical
Breakaway
No
Circuits (Loaded)
24
Polarized to PCB
Yes
Durability (mating cycles max)
100
UL
E29179
Max-Cycle
3
Material - Plating Termination
Matte Tin
Pitch - Mating Interface
4.20mm
Product Name
Mini-Fit Jr.
Stackable
No
Current - Maximum per Contact
13.0A
Glow-Wire Capable
Yes
Shrouded
Fully
First Mate / Last Break
No
Max-Duration
30
PCB Retention
Yes
Voltage - Maximum
600V AC (RMS)/DC
Temperature Range - Operating
-40° to +105°C
Lock to Mating Part
Yes
Material - Plating Mating
Matte Tin
Flammability
94V-0
Polarized to Mating Part
Yes
Max-Temp
265
Material - Resin
High Temperature Thermoplastic
Material - Metal
Brass
CSA
LR19980
PCB Locator
Yes
Guide to Mating Part
No
