  11. Rectangular Power Connector, 28 Contact(S), Female, Press Fit Terminal, Receptacle

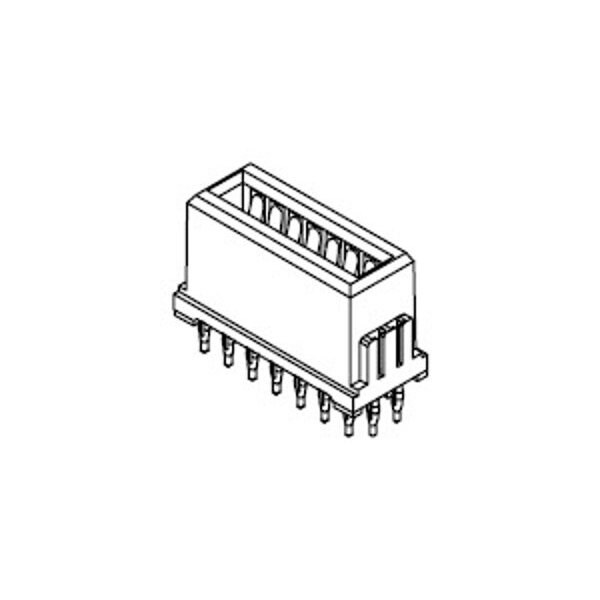

Molex Rectangular Power Connector, 28 Contact(S), Female, Press Fit Terminal, Receptacle 755425000 - main

Rectangular Power Connector, 28 Contact(S), Female, Press Fit Terminal, Receptacle

  • Mfr # 755425000

  • Zoro # G905932342

product price: $5.85
/ea
Sold in multiples of 13 for $76.05

Key Features

Max. Voltage
600V
Max. Temp.
105°C
Application
Board-to-Board, Power
Series
75542
Standards
CSA Certified; UL E29179
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
755425000
Zoro #
G905932342
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
2.40mm
PC Tail Length
4.72mm

Details

Max. Voltage
600V
Max. Temp.
105°C
Application
Board-to-Board, Power
Series
75542
Standards
CSA Certified; UL E29179
Material
High Temperature Thermoplastic
Terminal Type
Through Hole - Compliant Pin
Hole Center to Center
1.6 mm
Features
Surface Mount Compatible
Color
Black
Current Rating
150 A
Number of Rows
4
Contact Finish
Gold Plated
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Number of Contacts
4
Temperature Range - Operating
-40° to +105°C
Stackable
No
Lock to Mating Part
No
PCB Retention
None
UL
E29179
Pitch - Mating Interface
1.60mm
Guide to Mating Part
No
Grounding to PCB
No
CSA
LR19980
Flammability
94V-0
Keying to Mating Part
None
Glow-Wire Capable
No
Component Type
PCB Receptacle
Material - Plating Termination
Tin
Current - Maximum per Contact
150.0A
Orientation
Vertical
Polarized to PCB
No
Plating min - Mating
0.762µm
Product Name
EXTreme PowerMass
Material - Resin
High Temperature Thermoplastic
PCB Locator
No
Polarized to Mating Part
No
Material - Plating Mating
Gold
Circuits (Loaded)
4
Material - Metal
High Performance Alloy (HPA)
Durability (mating cycles max)
50
