  9. Rectangular Power Connector, 3 Contact(S), Male, Solder Terminal, Receptacle
This item is Discontinued.

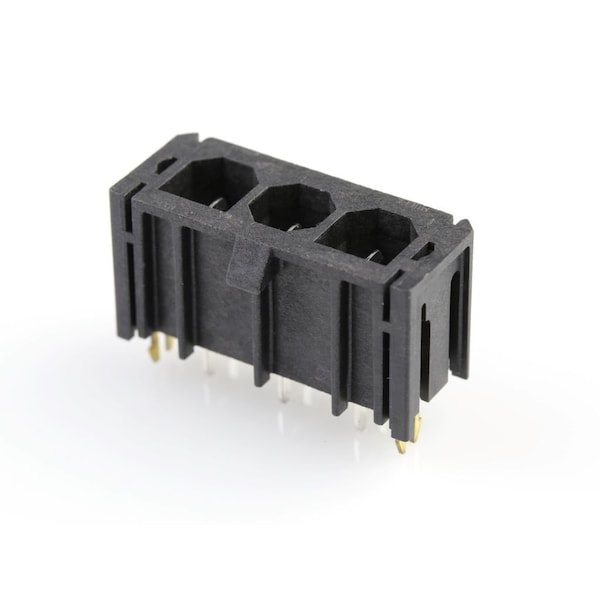

Molex Rectangular Power Connector, 3 Contact(S), Male, Solder Terminal, Receptacle 431602103

Rectangular Power Connector, 3 Contact(S), Male, Solder Terminal, Receptacle (Discontinued)

  • Mfr # 431602103
  • Zoro # G105910461
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
431602103
Zoro #
G105910461
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.889 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
3.81mm

Details

Color
Black
Number of Rows
1
Series
43160
Max. Voltage
600V
Application
Power, Wire-to-Board
Standards
CSA Certified; UL E29179
Hole Center to Center
7.5 mm
Terminal Type
Through Hole
Material
High Temperature Thermoplastic
Max. Temp.
235°C
Features
Glow-Wire Capable
Current Rating
18 A
Terminal Finish
Tin Plated
Contact Finish
Tin Plated
Number of Contacts
3
Flammability Rating
UL 94V-0
Guide to Mating Part
No
CSA
LR19980
Shrouded
Fully
Max-Temp
235
Glow-Wire Capable
Yes
Max-Duration
5
Durability (mating cycles max)
25
Pitch - Mating Interface
7.50mm
Breakaway
No
First Mate / Last Break
No
Orientation
Vertical
Current - Maximum per Contact
18.0A
Temperature Range - Operating
-40° to +75°C
PCB Locator
Yes
Material - Metal
Brass
PCB Retention
Yes
UL
E29179
Stackable
No
Lock to Mating Part
Yes
Circuits (Loaded)
3
Material - Resin
High Temperature Thermoplastic
Keying to Mating Part
Yes
Plating min - Mating
0.889µm
Material - Plating Termination
Tin
Product Name
Sabre
Component Type
PCB Header
Flammability
94V-0
Polarized to Mating Part
Yes
Material - Plating Mating
Tin
Polarized to PCB
Yes
