  11. Rectangular Power Connector, 34 Contact(S), Female, Solder Terminal, Receptacle
This item is Discontinued.

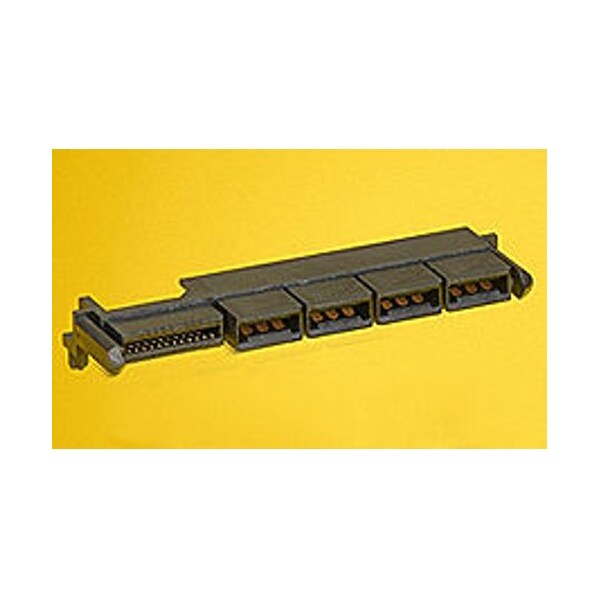

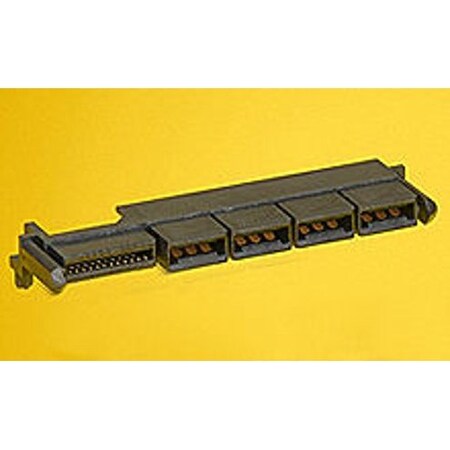

Molex Rectangular Power Connector, 34 Contact(S), Female, Solder Terminal, Receptacle 459841442

Rectangular Power Connector, 34 Contact(S), Female, Solder Terminal, Receptacle (Discontinued)

  • Mfr # 459841442
  • Zoro # G905964268
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
459841442
Zoro #
G905964268
UPC #
822350773126
Country of Origin
China

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
2.36mm
PC Tail Length
3.60mm

Details

Item
Power Connector
Color
Black
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Board-to-Board, Power
Current
20 A
Series
45984
Standards
CSA Certified; UL E29179
Maximum Operating Temperature
260 Degrees C
UL 94 Flammability Rating
V-0
Material
High Temperature Thermoplastic
Terminal Type
Through Hole
Features
Surface Mount Compatible
Sub-Category
PCB Receptacles
Max. Temp.
260°C
Number of Rows
2
Current Rating
20 A
Contact Finish
Gold Plated
Number of Contacts
34
Hole Center to Center
1.27 mm, 12 mm
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Max-Cycle
3
Guide to Mating Part
Yes
Temperature Range - Operating
-40° to +105°C
Plating min - Mating
0.762µm
Material - Plating Termination
Tin
Durability (mating cycles max)
250
Material - Plating Mating
Gold
Material - Metal
High Performance Alloy (HPA)
UL
E29179
Circuits (Loaded)
34
Polarized to Mating Part
Yes
Orientation
Right Angle
Lock to Mating Part
No
PCB Retention
Yes
Current - Maximum per Contact
20.0A
Component Type
PCB Receptacle
Glow-Wire Capable
No
PCB Locator
Yes
Flammability
94V-0
Pitch - Mating Interface
1.27mm, 12.00mm
Material - Resin
High Temperature Thermoplastic
(p)ower-(s)ignal Configuration
10p - 24s
Grounding to PCB
No
Max-Temp
260
Product Name
EXTreme LPHPower
Stackable
No
Polarized to PCB
Yes
Max-Duration
20
CSA
LR19980
Keying to Mating Part
Yes
