  9. Rectangular Power Connector, 4 Contact(S), Female, Solder Terminal, Receptacle
This item is Discontinued.

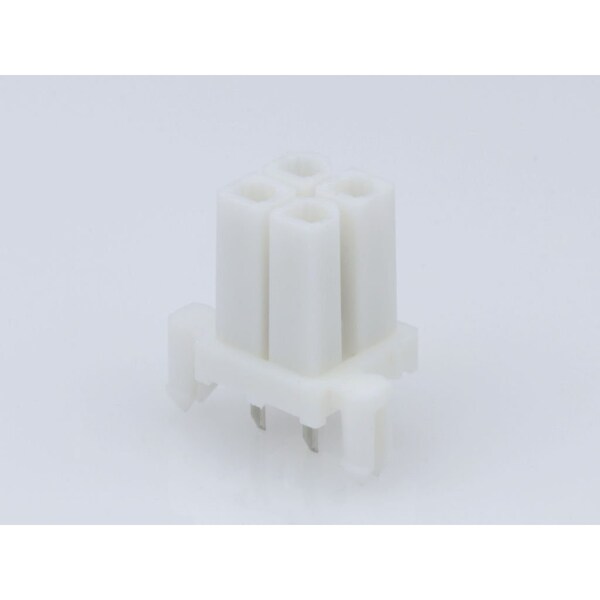

Molex Rectangular Power Connector, 4 Contact(S), Female, Solder Terminal, Receptacle 15247041

Rectangular Power Connector, 4 Contact(S), Female, Solder Terminal, Receptacle (Discontinued)

  • Mfr # 15247041
  • Zoro # G105910119
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
15247041
Zoro #
G105910119
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.00mm

Details

Color
Natural
Number of Rows
2
Series
42385
Max. Voltage
600V AC/DC
Application
Board-to-Board, Power, Wire-to-Board
Hole Center to Center
4.2 mm
Terminal Type
Through Hole
Standards
CSA Certified; UL E29179
Max. Temp.
240°C
Material
Nylon
Contact Finish
Tin Plated
Current Rating
9 A
Number of Contacts
4
Flammability Rating
UL 94V-0
Max-Temp
240
Material - Metal
Brass
Circuits (Loaded)
4
CSA
LR19980
Guide to Mating Part
Yes
UL
E29179
Material - Plating Mating
Tin
Orientation
Vertical
Component Type
PCB Receptacle
Color - Resin
Natural (White)
Temperature Range - Operating
-40° to +105°C
PCB Locator
Yes
Max-Cycle
1
Product Name
Mini-Fit BMI
Keying to Mating Part
None
Lock to Mating Part
None
Glow-Wire Capable
No
Voltage - Maximum
600V AC (RMS)/DC
Durability (mating cycles max)
30
PCB Retention
Yes
Material - Resin
Nylon
Grounding to PCB
No
Polarized to PCB
Yes
Pitch - Mating Interface
4.20mm
Max-Duration
5
Flammability
94V-0
Current - Maximum per Contact
9.0A
Polarized to Mating Part
Yes
