  9. Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Plug
This item is Discontinued.

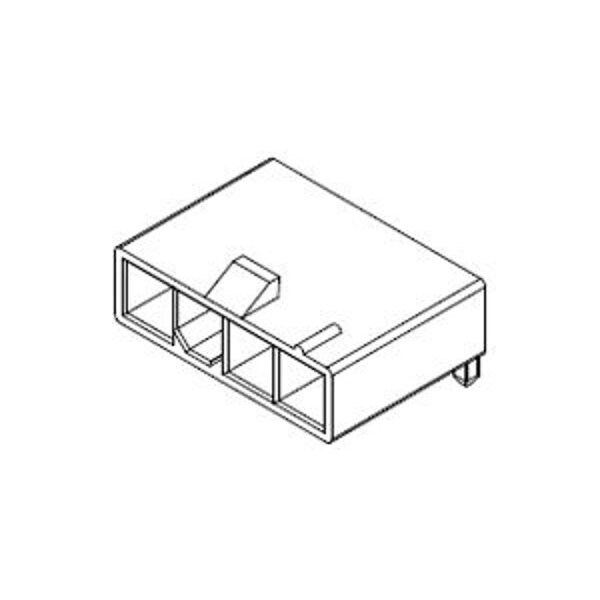

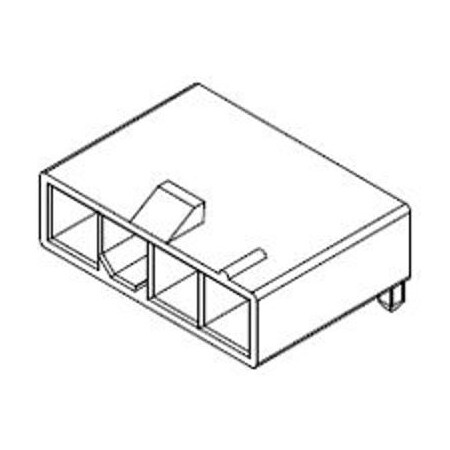

Molex Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Plug 39303048

Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Plug (Discontinued)

  • Mfr # 39303048
  • Zoro # G605911180
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
39303048
Zoro #
G605911180
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.78mm

Details

Number of Rows
1
Series
5569
Application
Power, Wire-to-Board
Material - Metal
Brass
Plating min - Mating
0.762µm
Pitch - Mating Interface
4.20mm
UL
E29179
Glow-Wire Capable
No
Temperature Range - Operating
-40° to +105°C
Lock to Mating Part
Yes
Current - Maximum per Contact
13.0A
PCB Retention
Yes
Keying to Mating Part
None
Material - Resin
Nylon
Product Name
Mini-Fit Jr.
Durability (mating cycles max)
30
Max-Cycle
1
Termination Interface Style
Through Hole
Voltage - Maximum
600V
Circuits (Loaded)
4
First Mate / Last Break
No
Component Type
PCB Header
Guide to Mating Part
No
Max-Duration
5
Orientation
Right Angle
Max-Temp
240
CSA
LR19980
Color - Resin
Natural
Stackable
No
Polarized to PCB
Yes
Flammability
94V-0
Breakaway
No
Polarized to Mating Part
Yes
Material - Plating Termination
Matte Tin
PCB Locator
Yes
Material - Plating Mating
Gold
Shrouded
Fully
