  9. Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle
This item is Discontinued.

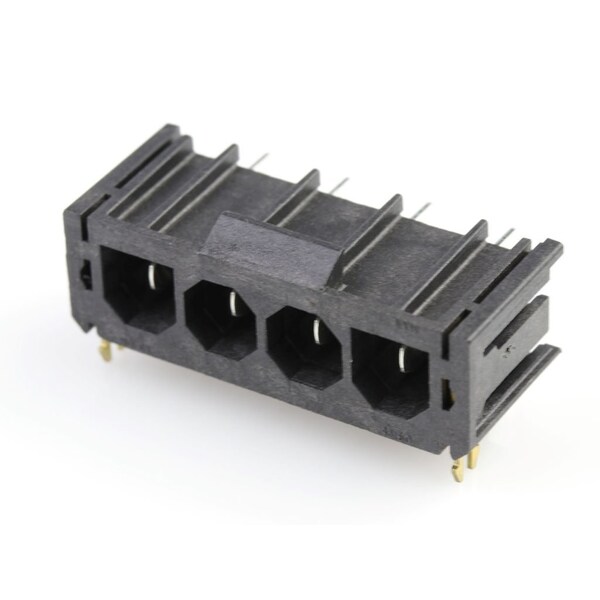

Molex Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle 431603104

Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle (Discontinued)

  • Mfr # 431603104
  • Zoro # G305910711
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
431603104
Zoro #
G305910711
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.889 µm
PC Tail Length
3.81mm
PCB Thickness - Recommended
1.60mm

Details

Color
Black
Number of Rows
1
Series
43160
Max. Voltage
600V
Application
Power, Wire-to-Board
Max. Temp.
235°C
Terminal Type
Through Hole
Standards
CSA Certified; UL E29179
Material
High Temperature Thermoplastic
Hole Center to Center
7.5 mm
Features
Glow-Wire Capable
Terminal Finish
Tin Plated
Current Rating
18 A
Contact Finish
Tin Plated
Flammability Rating
UL 94V-0
Number of Contacts
4
Breakaway
No
Product Name
Sabre
Shrouded
Fully
PCB Retention
Yes
Lock to Mating Part
Yes
Keying to Mating Part
Yes
Temperature Range - Operating
-40° to +75°C
Guide to Mating Part
No
Component Type
PCB Header
Material - Plating Termination
Tin
Durability (mating cycles max)
25
CSA
LR19980
Max-Duration
5
Glow-Wire Capable
Yes
PCB Locator
Yes
Plating min - Mating
0.889µm
UL
E29179
Polarized to Mating Part
Yes
Material - Resin
High Temperature Thermoplastic
Circuits (Loaded)
4
Polarized to PCB
Yes
Flammability
94V-0
Max-Temp
235
Material - Metal
Brass
Orientation
Right Angle
Current - Maximum per Contact
18.0A
First Mate / Last Break
No
Pitch - Mating Interface
7.50mm
Stackable
No
Material - Plating Mating
Tin
