  5. Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle

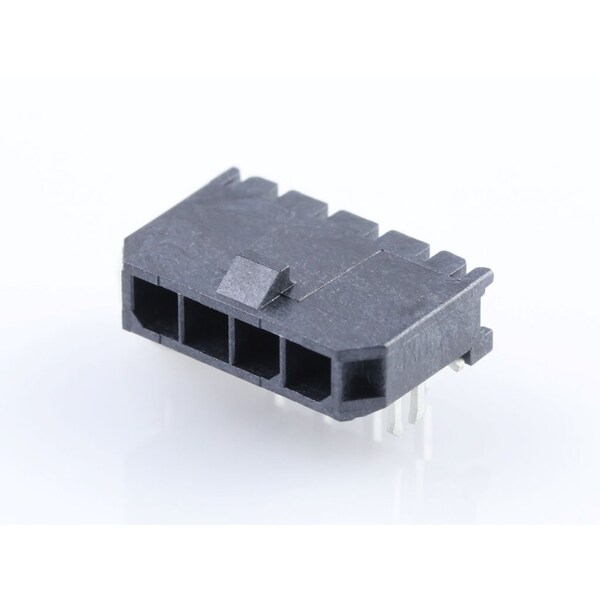

Molex Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle 436500405 - main

Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 436500405

  • Zoro # G105911055

product price:  $2.15
/ea
Sold in multiples of 50 for $107.50

Key Features

Color
Black
Number of Rows
1
Series
43650
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
436500405
Zoro #
G105911055
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.762 µm
Mated Height
6.98mm
PCB Thickness - Recommended
1.60mm

Details

Color
Black
Number of Rows
1
Series
43650
Max. Voltage
600V
Application
Power, Wire-to-Board
Standards
CSA Certified; UL E29179
Hole Center to Center
3 mm
Features
Glow-Wire Capable; Surface Mount Compatible
Material
High Temperature Thermoplastic
Terminal Type
Through Hole
Max. Temp.
260°C
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Number of Contacts
4
Contact Finish
Gold Plated
Current Rating
8.5 A
Stackable
No
Flammability
94V-0
UL
E29179
Glow-Wire Capable
Yes
Durability (mating cycles max)
30
Max-Temp
260
Plating min - Mating
0.762µm
Orientation
Right Angle
Material - Plating Mating
Gold
CSA
LR19980
PCB Retention
Yes
Material - Resin
High Temperature Thermoplastic
Max-Duration
30
Current - Maximum per Contact
8.5A
Material - Metal
Brass
Polarized to PCB
Yes
Material - Plating Termination
Tin
Product Name
Micro-Fit 3.0
Shrouded
Fully
Max-Cycle
3
PCB Locator
Yes
Pitch - Mating Interface
3.00mm
Temperature Range - Operating
-40° to +125°C
Component Type
PCB Header
Breakaway
No
Circuits (Loaded)
4
