  9. Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle

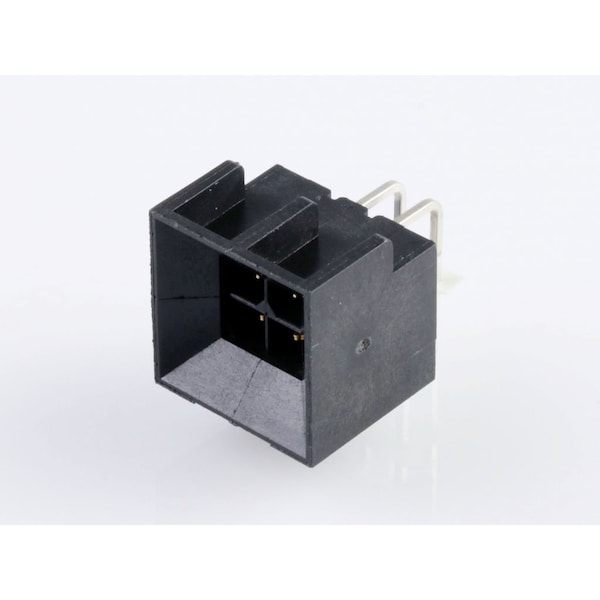

Molex Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle 444280401 - main

Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 444280401

  • Zoro # G305910452

product price: $1.59
/ea
Sold in multiples of 56 for $89.04

Key Features

Color
Black
Number of Rows
2
Series
44428
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
444280401
Zoro #
G305910452
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
5.08 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
3.50mm

Details

Color
Black
Number of Rows
2
Series
44428
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
Standards
CSA Certified; UL E29179
Material
High Temperature Thermoplastic
Hole Center to Center
3 mm
Terminal Type
Through Hole
Max. Temp.
260°C
Features
Surface Mount Compatible
Flammability Rating
UL 94V-0
Contact Finish
Tin Plated
Terminal Finish
Tin Plated
Current Rating
8.5 A
Number of Contacts
4
Orientation
Right Angle
Polarized to PCB
Yes
Circuits (Loaded)
4
Material - Plating Termination
Tin
Plating min - Mating
5.080µm
Current - Maximum per Contact
8.5A
Temperature Range - Operating
-40° to +105°C
Glow-Wire Capable
No
Keying to Mating Part
None
Component Type
PCB Header
Material - Plating Mating
Tin
Max-Duration
5
First Mate / Last Break
No
Lock to Mating Part
Yes
Stackable
No
Material - Resin
Nylon
Product Name
Micro-Fit BMI
Shrouded
Fully
CSA
LR19980
Guide to Mating Part
No
Max-Cycle
1
PCB Retention
Yes
UL
E29179
Durability (mating cycles max)
30
Max-Temp
260
Material - Metal
Brass
Pitch - Mating Interface
3.00mm
Breakaway
No
Flammability
94V-0
PCB Locator
Yes
