  9. Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle
This item is Discontinued.

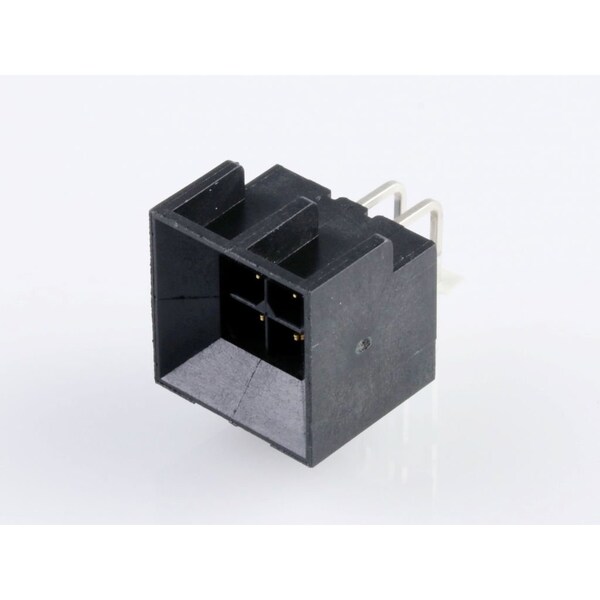

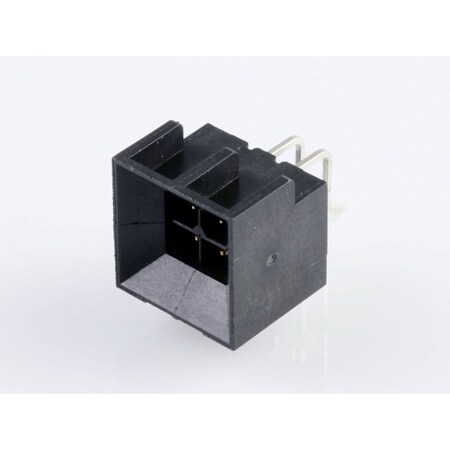

Molex Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle 444280402

Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle (Discontinued)

  • Mfr # 444280402
  • Zoro # G105910621
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
444280402
Zoro #
G105910621
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.381 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
3.50mm

Details

Color
Black
Number of Rows
2
Series
44428
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
Standards
CSA Certified; UL E29179
Max. Temp.
260°C
Hole Center to Center
3 mm
Features
Surface Mount Compatible
Material
High Temperature Thermoplastic
Terminal Type
Through Hole
Number of Contacts
4
Current Rating
8.5 A
Terminal Finish
Tin Plated
Contact Finish
Gold Plated
Flammability Rating
UL 94V-0
Max-Cycle
1
Material - Plating Mating
Gold
Flammability
94V-0
Guide to Mating Part
No
Polarized to PCB
Yes
Breakaway
No
PCB Locator
Yes
Max-Temp
260
Lock to Mating Part
Yes
Material - Resin
Nylon
Component Type
PCB Header
Plating min - Mating
0.381µm
Glow-Wire Capable
No
Pitch - Mating Interface
3.00mm
Product Name
Micro-Fit BMI
Circuits (Loaded)
4
Keying to Mating Part
None
CSA
LR19980
PCB Retention
Yes
Material - Metal
Brass
Max-Duration
5
Shrouded
Fully
Material - Plating Termination
Tin
Current - Maximum per Contact
8.5A
Temperature Range - Operating
-40° to +105°C
First Mate / Last Break
No
UL
E29179
Durability (mating cycles max)
30
Stackable
No
Orientation
Right Angle
