  9. Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle
This item is Discontinued.

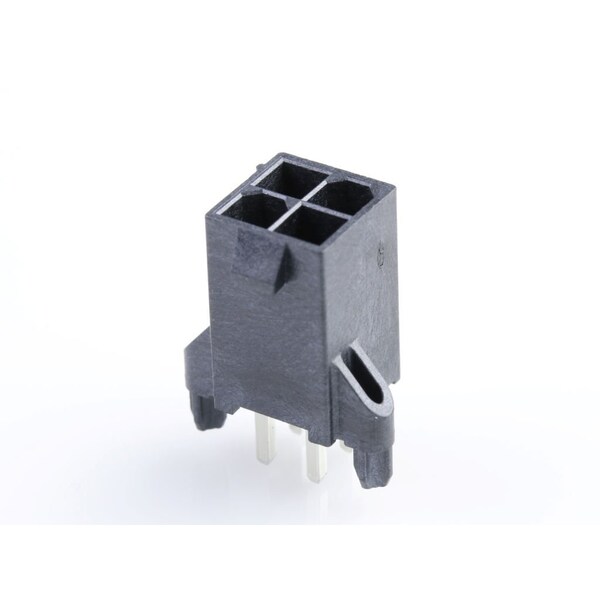

Molex Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle 462070004

Rectangular Power Connector, 4 Contact(S), Male, Solder Terminal, Receptacle (Discontinued)

  • Mfr # 462070004
  • Zoro # G205910439
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
462070004
Zoro #
G205910439
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
1.57mm
PC Tail Length
3.66mm

Details

Color
Black
Number of Rows
2
Series
46207
Max. Voltage
600V AC/DC
Application
Board-to-Board, Power, Wire-to-Board
Standards
CSA Certified; UL E29179
Terminal Type
Through Hole
Max. Temp.
260°C
Features
Glow-Wire Capable; Surface Mount Compatible
Material
High Temperature Thermoplastic
Hole Center to Center
4.2 mm
Flammability Rating
UL 94V-0
Current Rating
13 A
Contact Finish
Matte Tin Plated
Terminal Finish
Matte Tin Plated
Number of Contacts
4
Pitch - Mating Interface
4.20mm
Max-Duration
30
Glow-Wire Capable
Yes
UL
E29179
Max-Cycle
3
Polarized to PCB
Yes
Material - Plating Mating
Matte Tin
Material - Plating Termination
Matte Tin
Voltage - Maximum
600V AC (RMS)/DC
Current - Maximum per Contact
13.0A
Breakaway
No
Lock to Mating Part
Yes
Flammability
94V-0
Shrouded
Fully
PCB Locator
Yes
First Mate / Last Break
No
CSA
LR19980
PCB Retention
Yes
Stackable
No
Guide to Mating Part
No
Material - Metal
Brass
Durability (mating cycles max)
100
Orientation
Vertical
Product Name
Mini-Fit Jr.
Material - Resin
High Temperature Thermoplastic
Temperature Range - Operating
-40° to +105°C
Component Type
PCB Header
Polarized to Mating Part
Yes
Max-Temp
260
Circuits (Loaded)
4
