  11. Rectangular Power Connector, 40 Contact(S), Female, Press Fit Terminal, Receptacle
This item is Discontinued.

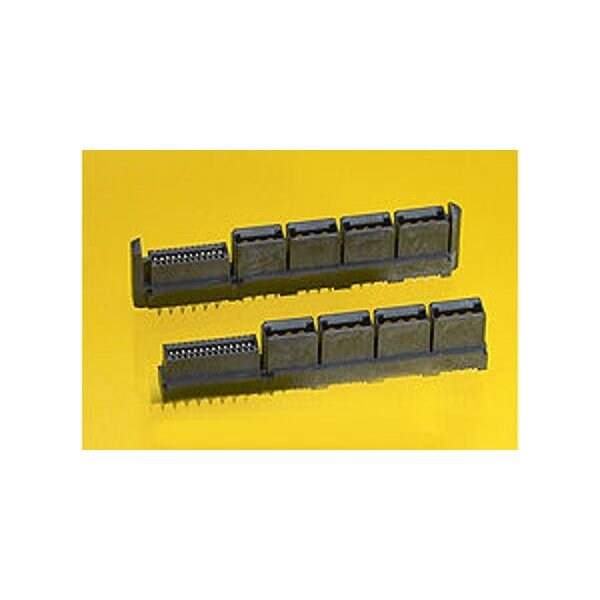

Molex Rectangular Power Connector, 40 Contact(S), Female, Press Fit Terminal, Receptacle 461148321

Rectangular Power Connector, 40 Contact(S), Female, Press Fit Terminal, Receptacle (Discontinued)

  • Mfr # 461148321
  • Zoro # G205964678
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
461148321
Zoro #
G205964678
UPC #
756054923290
Country of Origin
China

Dimensions

Contact Plating Thickness
0.762 µm

Details

Item
Power Connector
Color
Black
Insulation Material
High Temperature Thermoplastic
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Application
Board-to-Board, Power
Current
30 A
Series
46114
Standards
CSA Certified; UL E29179
Minimum Operating Temperature
-40 Degrees
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Material
High Temperature Thermoplastic
Current Rating
30 A
Features
Surface Mount Compatible
Sub-Category
PCB Receptacles
Contact Finish
Gold Plated
Number of Contacts
40
Hole Center to Center
1.27 mm, 12 mm (Mating Interface); 1.27 mm, 2.5 mm (Termination Interface)
Number of Rows
2
Max. Temp.
105°C
Terminal Type
Through Hole - Compliant Pin
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Polarized to Mating Part
Yes
CSA
LR19880
Plating min - Mating
0.762µm
PCB Locator
No
UL
E29179
Grounding to PCB
No
(p)ower-(s)ignal Configuration
8p - 32s
Material - Plating Termination
Tin
Circuits (Loaded)
40
Material - Resin
High Temperature Thermoplastic
Current - Maximum per Contact
30.0A
Pitch - Mating Interface
1.27mm, 12.00mm
Orientation
Vertical
Guide to Mating Part
No
Component Type
PCB Receptacle
Keying to Mating Part
None
Stackable
No
Glow-Wire Capable
No
Material - Plating Mating
Gold
Material - Metal
High Performance Alloy (HPA)
Voltage - Maximum
250V AC (RMS)/DC
Lock to Mating Part
None
Temperature Range - Operating
-40° to +105°C
Durability (mating cycles max)
250
Polarized to PCB
Yes
Product Name
EXTreme LPHPower
PCB Retention
None
Flammability
94V-0
