  11. Rectangular Power Connector, 42 Contact(S), Female, Solder Terminal, Receptacle
This item is Discontinued.

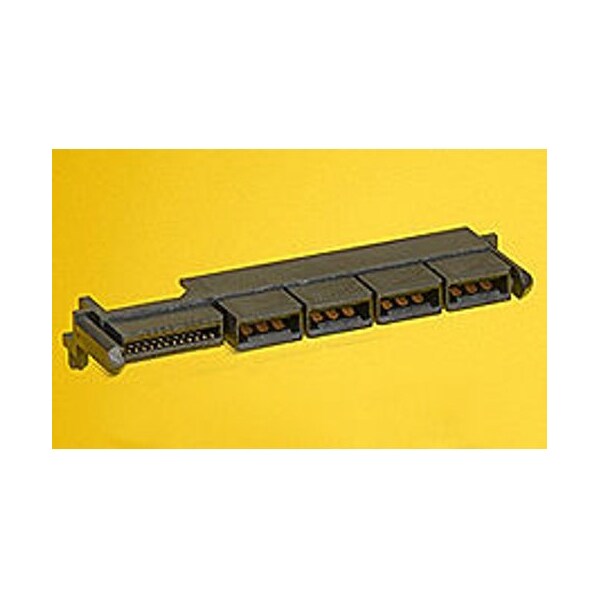

Molex Rectangular Power Connector, 42 Contact(S), Female, Solder Terminal, Receptacle 459841162

Rectangular Power Connector, 42 Contact(S), Female, Solder Terminal, Receptacle (Discontinued)

  • Mfr # 459841162
  • Zoro # G505964262
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
459841162
Zoro #
G505964262
UPC #
822350772488
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.762 µm
PC Tail Length
3.60mm
PCB Thickness - Recommended
2.36mm

Details

Item
Power Connector
Color
Black
Insulation Material
High Temperature Thermoplastic
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Board-to-Board, Power
Current
20 A
Series
45984
Standards
CSA Certified; UL E29179
Maximum Operating Temperature
260 Degrees C
UL 94 Flammability Rating
V-0
Material
High Temperature Thermoplastic
Terminal Type
Through Hole
Number of Contacts
42
Features
Surface Mount Compatible
Contact Finish
Gold Plated
Hole Center to Center
1.27 mm, 12 mm
Sub-Category
PCB Receptacles
Current Rating
20 A
Number of Rows
2
Max. Temp.
260°C
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Grounding to PCB
No
Polarized to Mating Part
Yes
Current - Maximum per Contact
20.0A
PCB Retention
None
PCB Locator
No
Max-Temp
260
UL
E29179
Product Name
EXTreme LPHPower
Plating min - Mating
0.762µm
Stackable
No
Material - Plating Termination
Tin
Material - Plating Mating
Gold
Material - Metal
High Performance Alloy (HPA)
Max-Duration
20
Polarized to PCB
Yes
Component Type
PCB Receptacle
Keying to Mating Part
Yes
Circuits (Loaded)
42
Glow-Wire Capable
No
Orientation
Right Angle
Flammability
94V-0
Guide to Mating Part
No
Durability (mating cycles max)
250
Pitch - Mating Interface
1.27mm, 12.00mm
CSA
LR19980
Max-Cycle
3
Lock to Mating Part
No
Temperature Range - Operating
-40° to +105°C
Material - Resin
High Temperature Thermoplastic
(p)ower-(s)ignal Configuration
10p - 32s
