  11. Rectangular Power Connector, 42 Contact(S), Female, Solder Terminal, Receptacle

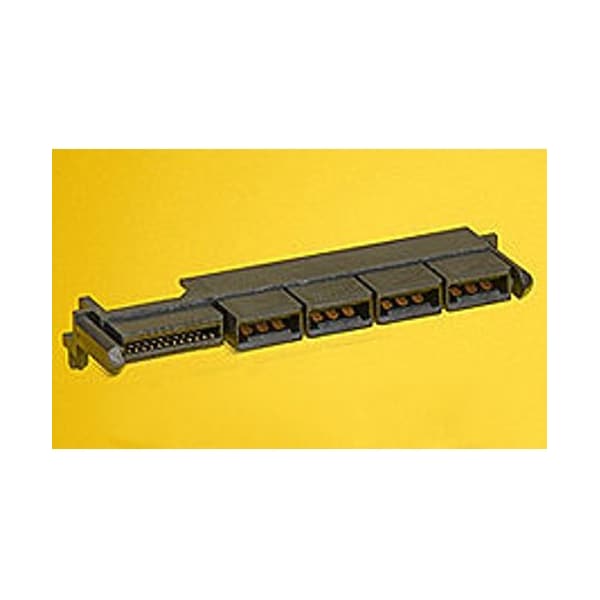

Molex Rectangular Power Connector, 42 Contact(S), Female, Solder Terminal, Receptacle 459841461 - main

Rectangular Power Connector, 42 Contact(S), Female, Solder Terminal, Receptacle

  • Mfr # 459841461

  • Zoro # G705963966

product price: $18.85
/ea
Sold in multiples of 4 for $75.40

Key Features

Color
Black
Max. Voltage
250V AC
Maximum Voltage
250 V
Application
Board-to-Board, Power
Current
20 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
459841461
Zoro #
G705963966
UPC #
822350773164
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
3.18mm
PC Tail Length
4.50mm

Details

Item
Power Connector
Color
Black
Max. Voltage
250V AC
Maximum Voltage
250 V
Application
Board-to-Board, Power
Current
20 A
Series
45984
Standards
CSA Certified; UL E29179
Maximum Operating Temperature
260 Degrees C
UL 94 Flammability Rating
V-0
Material
High Temperature Thermoplastic
Number of Rows
2
Features
Surface Mount Compatible
Sub-Category
PCB Receptacles
Current Rating
20 A
Hole Center to Center
1.27 mm, 12 mm
Contact Finish
Gold Plated
Max. Temp.
260°C
Number of Contacts
42
Terminal Type
Through Hole
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Temperature Range - Operating
-40° to +105°C
Circuits (Loaded)
42
Max-Temp
260
Product Name
EXTreme LPHPower
Polarized to Mating Part
Yes
Glow-Wire Capable
No
Pitch - Mating Interface
1.27mm, 12.00mm
Current - Maximum per Contact
20.0A
Polarized to PCB
Yes
Material - Resin
High Temperature Thermoplastic
Material - Metal
High Performance Alloy (HPA)
Grounding to PCB
No
Max-Cycle
3
UL
E29179
Durability (mating cycles max)
250
Material - Plating Mating
Gold
CSA
LR19980
PCB Locator
Yes
Plating min - Mating
0.762µm
Lock to Mating Part
No
PCB Retention
Yes
(p)ower-(s)ignal Configuration
10p - 32s
Keying to Mating Part
Yes
Stackable
No
Component Type
PCB Receptacle
Orientation
Right Angle
Max-Duration
20
Guide to Mating Part
Yes
Material - Plating Termination
Tin
Flammability
94V-0
