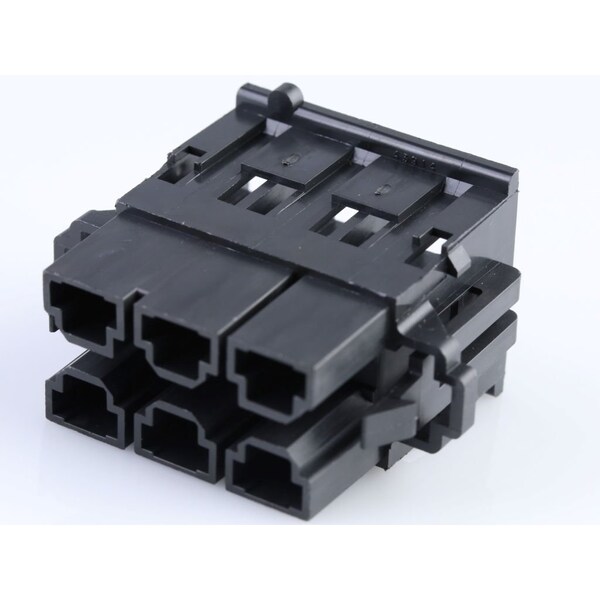

Rectangular Power Connector, 6 Contact(S), Female, Crimp Terminal, Receptacle
Mfr # 439141101
Zoro # G605910282
product price: $4.19
/eaSold in multiples of 20 for $83.80
Key Features
Color
Black
Number of Rows
2
Series
43914
Application
Power, Wire-to-Board, Wire-to-Wire
Connector Type
Receptacle
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
439141101
Zoro #
G605910282
UPC #
-
Country of Origin
United States
Details
Color
Black
Number of Rows
2
Series
43914
Application
Power, Wire-to-Board, Wire-to-Wire
Connector Type
Receptacle
Standards
CSA Certified; UL E29179
Hole Center to Center
1 mm
Material
Polyester
Max. Temp.
105°C
Flammability Rating
UL 94V-0
Current Rating
50 A
Number of Contacts
6
Product Name
Mini-Fit Sr.
Circuits (maximum)
6
Temperature Range - Operating
-40° to +105°C
Glow-Wire Capable
No
Stackable
No
Current - Maximum per Contact
50.0A
Pitch - Mating Interface
10.00mm
Material - Resin
Polyester
Flammability
94V-0
UL
E29179
CSA
LR19980
