  9. Rectangular Power Connector, 6 Contact(S), Female, Solder Terminal, Receptacle

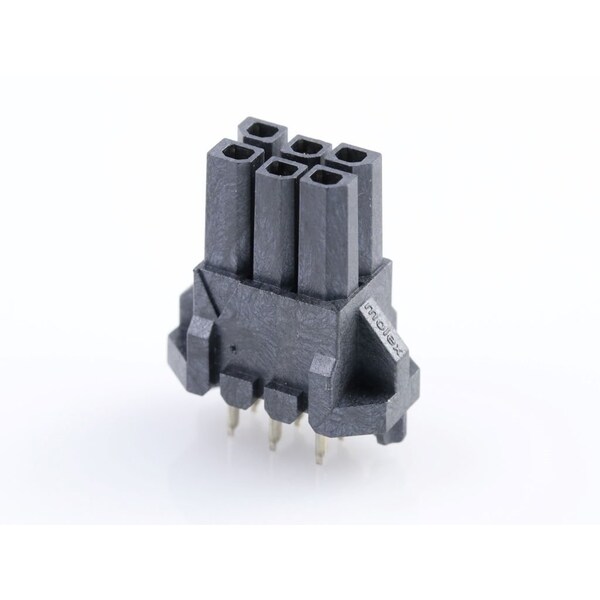

Molex Rectangular Power Connector, 6 Contact(S), Female, Solder Terminal, Receptacle 447690602 - main

Rectangular Power Connector, 6 Contact(S), Female, Solder Terminal, Receptacle

  • Mfr # 447690602

  • Zoro # G405910703

product price: $3.35
/ea
Sold in multiples of 30 for $100.50

Key Features

Color
Black
Number of Rows
2
Series
44769
Max. Voltage
250V
Application
Board-to-Board, Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
447690602
Zoro #
G405910703
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
0.381 µm
PCB Thickness - Recommended
1.57mm
PC Tail Length
3.40mm

Details

Color
Black
Number of Rows
2
Series
44769
Max. Voltage
250V
Application
Board-to-Board, Power, Wire-to-Board
Features
Surface Mount Compatible
Terminal Type
Through Hole
Max. Temp.
260°C
Hole Center to Center
3 mm
Material
Liquid Crystal Polymer
Standards
CSA Certified; UL E29179
Number of Contacts
6
Contact Finish
Gold Plated
Current Rating
8.5 A
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Glow-Wire Capable
No
Max-Duration
5
Circuits (Loaded)
6
Current - Maximum per Contact
8.5A
Pitch - Mating Interface
3.00mm
Product Name
Micro-Fit BMI
UL
E29179
CSA
LR19980
Flammability
94V-0
Material - Resin
Liquid Crystal Polymer
Polarized to Mating Part
Yes
Material - Plating Termination
Tin
PCB Locator
Yes
Orientation
Vertical
Polarized to PCB
Yes
Material - Plating Mating
Gold
Plating min - Mating
0.381µm
Temperature Range - Operating
-40° to +105°C
PCB Retention
Yes
Component Type
PCB Receptacle
Material - Metal
Phosphor Bronze
Max-Cycle
1
Durability (mating cycles max)
30
Max-Temp
260
