  9. Rectangular Power Connector, 6 Contact(S), Male, Press Fit Terminal, Receptacle

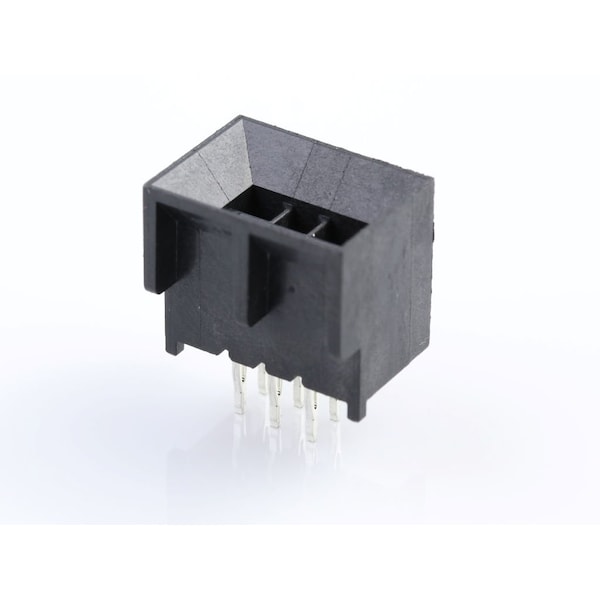

Molex Rectangular Power Connector, 6 Contact(S), Male, Press Fit Terminal, Receptacle 452800601 - main

Rectangular Power Connector, 6 Contact(S), Male, Press Fit Terminal, Receptacle

  • Mfr # 452800601

  • Zoro # G205909815

product price: $2.95
/ea
Sold in multiples of 35 for $103.25

Key Features

Color
Black
Number of Rows
2
Series
45280
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
452800601
Zoro #
G205909815
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
5.08 µm
PC Tail Length
4.80mm

Details

Color
Black
Number of Rows
2
Series
45280
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
Terminal Type
Through Hole - Compliant Pin
Max. Temp.
105°C
Material
High Temperature Thermoplastic
Standards
CSA Certified; UL E29179
Hole Center to Center
3 mm
Contact Finish
Tin Plated
Current Rating
8.5 A
Terminal Finish
Tin Plated
Number of Contacts
6
Flammability Rating
UL 94V-0
Flammability
94V-0
Stackable
No
Breakaway
No
Glow-Wire Capable
No
Material - Resin
High Temperature Thermoplastic
UL
E29179
Durability (mating cycles max)
30
PCB Locator
Yes
Material - Metal
High Performance Alloy (HPA)
Polarized to PCB
Yes
CSA
LR19980
Shrouded
Fully
Component Type
PCB Header
Lock to Mating Part
None
Material - Plating Mating
Tin
PCB Retention
Yes
Product Name
Micro-Fit BMI CPI
Circuits (Loaded)
6
Pitch - Mating Interface
3.00mm
Material - Plating Termination
Tin
Current - Maximum per Contact
8.5A
Polarized to Mating Part
Yes
Orientation
Vertical
Temperature Range - Operating
-40° to +105°C
Plating min - Mating
5.080µm
Guide to Mating Part
Yes
