  9. Rectangular Power Connector, 6 Contact(S), Male, Solder Terminal, Plug

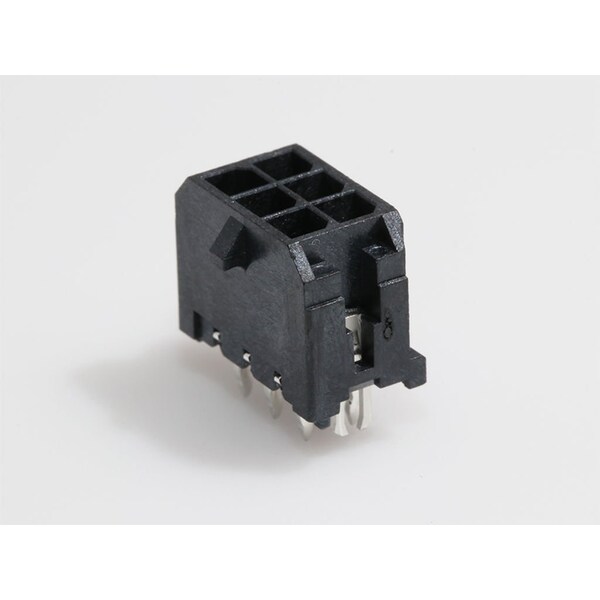

Molex Rectangular Power Connector, 6 Contact(S), Male, Solder Terminal, Plug 430450624 - main

Rectangular Power Connector, 6 Contact(S), Male, Solder Terminal, Plug

  • Mfr # 430450624

  • Zoro # G205910521

product price: $1.49
/ea
Sold in multiples of 62 for $92.38

Key Features

Color
Black
Number of Rows
2
Series
43045
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
430450624
Zoro #
G205910521
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.254 µm
PCB Thickness - Recommended
1.60mm
Mated Height
17.64mm

Details

Color
Black
Number of Rows
2
Series
43045
Max. Voltage
600V
Application
Power, Wire-to-Board
Standards
CSA Certified; UL E29179
Terminal Type
Through Hole - Kinked Pin
Material
High Temperature Thermoplastic
Max. Temp.
260°C
Hole Center to Center
3 mm
Features
Glow-Wire Capable; Surface Mount Compatible
Number of Contacts
6
Flammability Rating
UL 94V-0
Current Rating
8.5 A
Contact Finish
Tin Plated
Terminal Finish
Tin Plated
Material - Resin
High Temperature Thermoplastic
Circuits (Loaded)
6
Polarized to PCB
Yes
Component Type
PCB Header
Max-Temp
260
Flammability
94V-0
Shrouded
Fully
Current - Maximum per Contact
8.5A
PCB Locator
Yes
CSA
LR19980
Plating min - Mating
0.254µm
Product Name
Micro-Fit 3.0
Max-Duration
30
Glow-Wire Capable
Yes
Max-Cycle
3
Temperature Range - Operating
-40° to +105°C
Durability (mating cycles max)
30
Pitch - Mating Interface
3.00mm
PCB Retention
Yes
Breakaway
No
UL
E29179
Material - Metal
Brass
Orientation
Vertical
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Stackable
No
