  9. Rectangular Power Connector, 6 Contact(S), Male, Solder Terminal, Receptacle
This item is Discontinued.

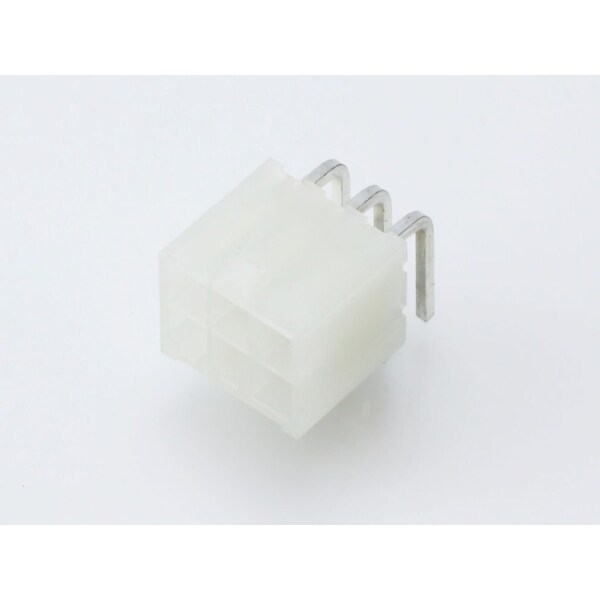

Molex Rectangular Power Connector, 6 Contact(S), Male, Solder Terminal, Receptacle 353180620

Rectangular Power Connector, 6 Contact(S), Male, Solder Terminal, Receptacle (Discontinued)

  • Mfr # 353180620
  • Zoro # G505911020
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
353180620
Zoro #
G505911020
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Contact Plating Thickness
5.08 µm
PC Tail Length
4.00mm
PCB Thickness - Recommended
1.60mm

Details

Color
Natural
Number of Rows
2
Series
35318
Max. Voltage
250V
Application
Power, Wire-to-Board
Hole Center to Center
4.2 mm
Terminal Type
Through Hole
Standards
CSA Certified; UL E29179
Material
Nylon
Max. Temp.
105°C
Number of Contacts
6
Terminal Finish
Tin Plated
Current Rating
13 A
Flammability Rating
UL 94V-2
Contact Finish
Tin Plated
Stackable
No
UL
E29179
Material - Plating Termination
Tin
Breakaway
No
Lock to Mating Part
Yes
Shrouded
Partial
Pitch - Mating Interface
4.20mm
Component Type
PCB Header
Durability (mating cycles max)
30
Polarized to PCB
No
PCB Retention
None
Orientation
Right Angle
Product Name
Mini-Fit
Material - Plating Mating
Tin
Guide to Mating Part
No
Material - Resin
Nylon
Keying to Mating Part
None
Glow-Wire Capable
No
Temperature Range - Operating
-40° to +105°C
Flammability
94V-2
PCB Locator
No
CSA
LR19980
Current - Maximum per Contact
13.0A
Circuits (Loaded)
6
Plating min - Mating
5.080µm
First Mate / Last Break
No
