  9. Rectangular Power Connector, 6 Contact(S), Male, Solder Terminal, Receptacle

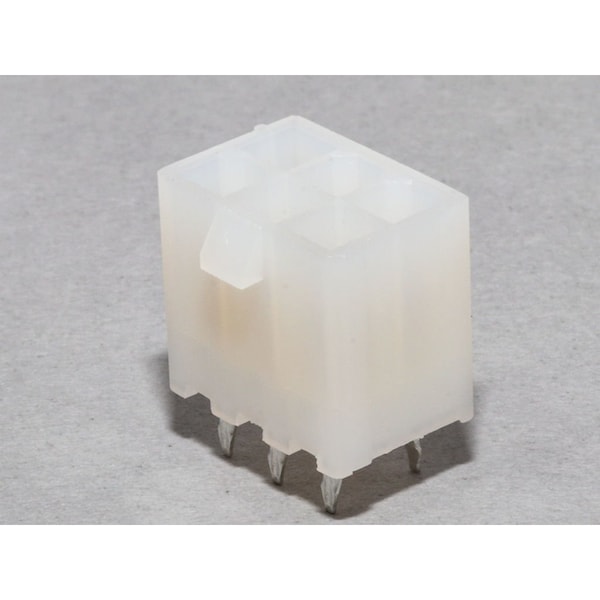

Molex Rectangular Power Connector, 6 Contact(S), Male, Solder Terminal, Receptacle 39290063 - main

Rectangular Power Connector, 6 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 39290063

  • Zoro # G505910597

product price: $2.25
/ea
Sold in multiples of 45 for $101.25

Key Features

Color
Natural
Number of Rows
2
Series
5566
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
39290063
Zoro #
G505910597
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.762 µm
PCB Thickness - Recommended
1.60mm
PC Tail Length
3.50mm

Details

Color
Natural
Number of Rows
2
Series
5566
Max. Voltage
600V
Application
Power, Wire-to-Board
Max. Temp.
260°C
Hole Center to Center
4.2 mm
Terminal Type
Through Hole
Standards
CSA Certified; UL E29179
Material
Nylon
Contact Finish
Gold Plated
Terminal Finish
Matte Tin Plated
Current Rating
9 A
Number of Contacts
6
Flammability Rating
UL 94V-2
First Mate / Last Break
No
Glow-Wire Capable
No
Component Type
PCB Header
Current - Maximum per Contact
9.0A
Shrouded
Fully
Max-Cycle
1
Material - Metal
Brass
Keying to Mating Part
None
Breakaway
No
Lock to Mating Part
Yes
Flammability
94V-2
Durability (mating cycles max)
30
UL
E29179
Max-Duration
5
Material - Resin
Nylon
Polarized to PCB
Yes
Plating min - Mating
0.762µm
Product Name
Mini-Fit Jr.
PCB Retention
None
Max-Temp
260
CSA
LR19980
Stackable
No
Temperature Range - Operating
-40° to +105°C
Orientation
Vertical
Material - Plating Termination
Matte Tin
PCB Locator
Yes
Pitch - Mating Interface
4.20mm
Guide to Mating Part
No
Circuits (Loaded)
6
Polarized to Mating Part
Yes
Material - Plating Mating
Gold
