  9. Rectangular Power Connector, 6 Contact(S), Male, Solder Terminal, Receptacle

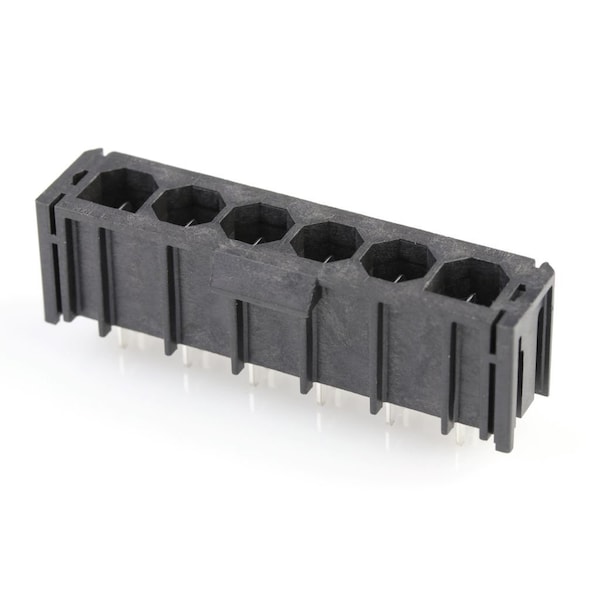

Molex Rectangular Power Connector, 6 Contact(S), Male, Solder Terminal, Receptacle 431600306 - main

Rectangular Power Connector, 6 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 431600306

  • Zoro # G605910404

product price: $1.99
/ea
Sold in multiples of 40 for $79.60

Key Features

Color
Black
Number of Rows
1
Series
43160
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
431600306
Zoro #
G605910404
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.889 µm
PCB Thickness - Recommended
2.40mm
PC Tail Length
5.33mm

Details

Color
Black
Number of Rows
1
Series
43160
Max. Voltage
600V
Application
Power, Wire-to-Board
Features
Glow-Wire Capable
Terminal Type
Through Hole
Standards
CSA Certified; UL E29179
Material
High Temperature Thermoplastic
Max. Temp.
235°C
Hole Center to Center
7.5 mm
Contact Finish
Tin Plated
Current Rating
18 A
Number of Contacts
6
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
First Mate / Last Break
No
Keying to Mating Part
Yes
Glow-Wire Capable
Yes
Breakaway
No
Stackable
No
Max-Duration
5
Lock to Mating Part
Yes
Shrouded
Fully
Material - Plating Termination
Tin
Polarized to PCB
Yes
Material - Resin
High Temperature Thermoplastic
Pitch - Mating Interface
7.50mm
Durability (mating cycles max)
25
Guide to Mating Part
No
Material - Metal
Brass
Material - Plating Mating
Tin
CSA
LR19980
Current - Maximum per Contact
18.0A
Component Type
PCB Header
Polarized to Mating Part
Yes
Plating min - Mating
0.889µm
Max-Temp
235
Flammability
94V-0
UL
E29179
Temperature Range - Operating
-40° to +75°C
Product Name
Sabre
PCB Locator
Yes
Circuits (Loaded)
6
Orientation
Vertical
