Shop MOLEX

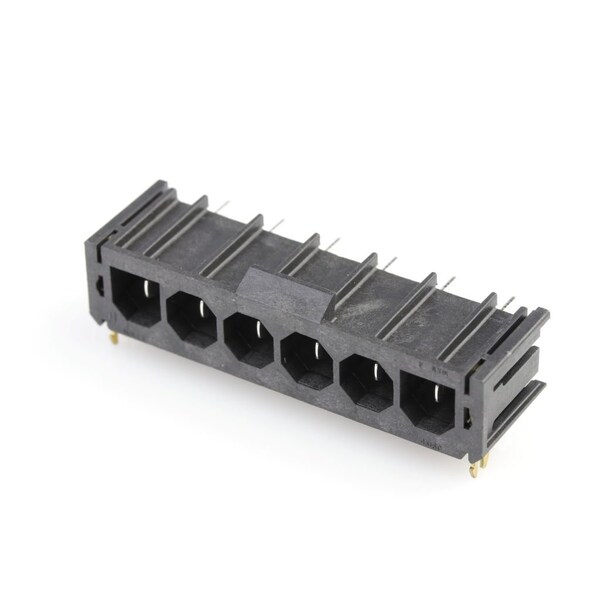

Rectangular Power Connector, 6 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 431603106

  • Zoro # G105910645

product price:  $2.75
/ea
Sold in multiples of 35 for $96.25

Key Features

Color
Black
Number of Rows
1
Series
43160
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
431603106
Zoro #
G105910645
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.889 µm
PC Tail Length
3.81mm
PCB Thickness - Recommended
1.60mm

Details

Color
Black
Number of Rows
1
Series
43160
Max. Voltage
600V
Application
Power, Wire-to-Board
Standards
CSA Certified; UL E29179
Features
Glow-Wire Capable
Max. Temp.
235°C
Hole Center to Center
7.5 mm
Material
High Temperature Thermoplastic
Terminal Type
Through Hole
Number of Contacts
6
Flammability Rating
UL 94V-0
Terminal Finish
Tin Plated
Contact Finish
Tin Plated
Current Rating
18 A
Circuits (Loaded)
6
Temperature Range - Operating
-40° to +75°C
Material - Plating Termination
Tin
Polarized to Mating Part
Yes
Current - Maximum per Contact
18.0A
First Mate / Last Break
No
Material - Metal
Brass
Max-Temp
235
CSA
LR19980
Product Name
Sabre
Polarized to PCB
Yes
Plating min - Mating
0.889µm
Shrouded
Fully
Breakaway
No
PCB Locator
Yes
Stackable
No
Guide to Mating Part
No
Flammability
94V-0
Lock to Mating Part
Yes
Glow-Wire Capable
Yes
Keying to Mating Part
Yes
Orientation
Right Angle
PCB Retention
Yes
UL
E29179
Material - Plating Mating
Tin
Component Type
PCB Header
Durability (mating cycles max)
25
Pitch - Mating Interface
7.50mm
Max-Duration
5
Material - Resin
High Temperature Thermoplastic
