  9. Rectangular Power Connector, 6 Contact(S), Male, Solder Terminal, Receptacle

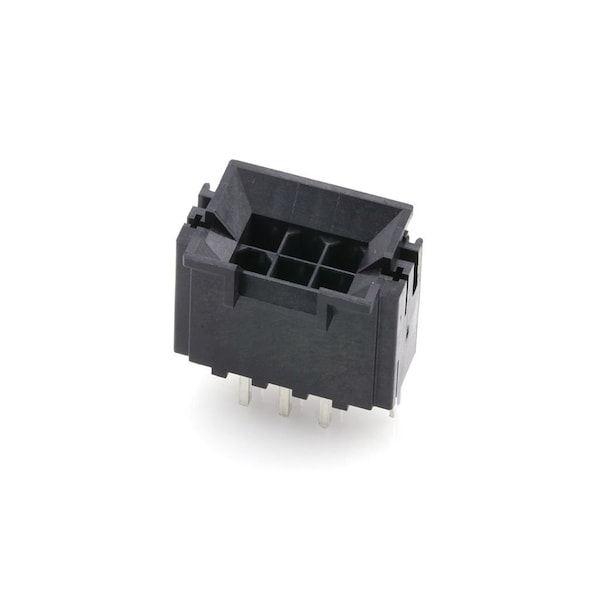

Molex Rectangular Power Connector, 6 Contact(S), Male, Solder Terminal, Receptacle 440680090 - main

Rectangular Power Connector, 6 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 440680090

  • Zoro # G205910606

product price: $2.85
/ea
Sold in multiples of 28 for $79.80

Key Features

Color
Black
Number of Rows
2
Series
44068
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
440680090
Zoro #
G205910606
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
2.54 µm
PCB Thickness - Recommended
3.20mm
PC Tail Length
4.88mm

Details

Color
Black
Number of Rows
2
Series
44068
Max. Voltage
600V
Application
Board-to-Board, Power, Wire-to-Board
Material
High Temperature Thermoplastic
Max. Temp.
240°C
Hole Center to Center
4.2 mm
Features
Surface Mount Compatible
Terminal Type
Through Hole
Standards
CSA Certified; UL E29179
Current Rating
13 A
Flammability Rating
UL 94V-0
Number of Contacts
6
Contact Finish
Tin Plated
Terminal Finish
Tin Plated
UL
E29179
Temperature Range - Operating
-40° to +105°C
Stackable
No
Durability (mating cycles max)
30
Flammability
94V-0
Product Name
Mini-Fit BMI
PCB Retention
Yes
Orientation
Vertical
Glow-Wire Capable
No
Material - Resin
High Temperature Thermoplastic
Max-Cycle
1
PCB Locator
Yes
Shrouded
Partial
Max-Duration
5
CSA
LR19980
Current - Maximum per Contact
13.0A
Pitch - Mating Interface
4.20mm
Material - Plating Mating
Tin
Plating min - Mating
2.540µm
Material - Metal
Brass
Material - Plating Termination
Tin
Breakaway
No
Component Type
PCB Header
Circuits (Loaded)
6
Max-Temp
240
Polarized to PCB
Yes
