  9. Rectangular Power Connector, 6 Contact(S), Male, Solder Terminal, Receptacle
This item is Discontinued.

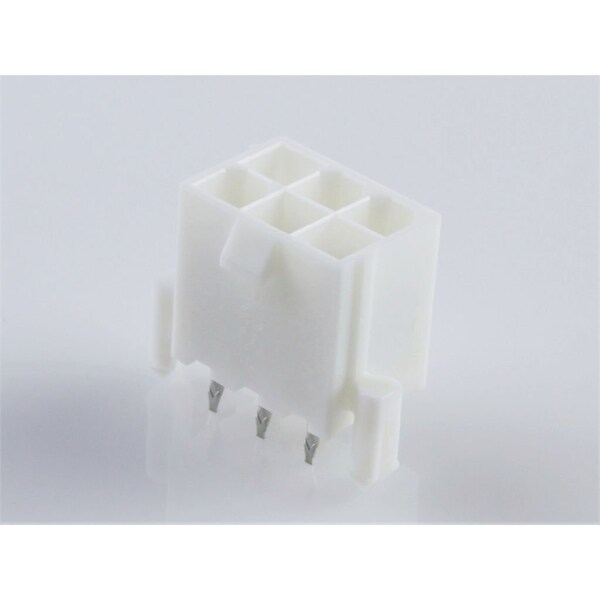

Molex Rectangular Power Connector, 6 Contact(S), Male, Solder Terminal, Receptacle 460150603

Rectangular Power Connector, 6 Contact(S), Male, Solder Terminal, Receptacle (Discontinued)

  • Mfr # 460150603
  • Zoro # G205910477
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
460150603
Zoro #
G205910477
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
2.54 µm
PC Tail Length
1.80mm
PCB Thickness - Recommended
1.78mm

Details

Color
Natural
Number of Rows
2
Series
46015
Max. Voltage
600V
Application
Power, Wire-to-Board
Material
Nylon
Standards
CSA Certified; UL E29179
Hole Center to Center
4.2 mm
Terminal Type
Through Hole
Max. Temp.
240°C
Terminal Finish
Tin Plated
Flammability Rating
UL 94V-0
Number of Contacts
6
Contact Finish
Tin Plated
Current Rating
13 A
PCB Retention
Yes
Stackable
No
Material - Resin
Nylon
Max-Cycle
1
Breakaway
No
Glow-Wire Capable
No
Keying to Mating Part
None
Durability (mating cycles max)
75
Polarized to PCB
Yes
Circuits (Loaded)
6
Current - Maximum per Contact
13.0A
Shrouded
Fully
CSA
LR19980
UL
E29179
Polarized to Mating Part
Yes
Orientation
Vertical
Plating min - Mating
2.540µm
PCB Locator
Yes
Product Name
Mini-Fit Plus
Pitch - Mating Interface
4.20mm
Component Type
PCB Header
Max-Temp
240
Guide to Mating Part
No
First Mate / Last Break
No
Max-Duration
5
Material - Metal
Copper Alloy
Lock to Mating Part
Yes
Material - Plating Mating
Tin
Material - Plating Termination
Tin
Flammability
94V-0
Temperature Range - Operating
-40° to +105°C
