  9. Rectangular Power Connector, 7 Contact(S), Male, Solder Terminal, Receptacle

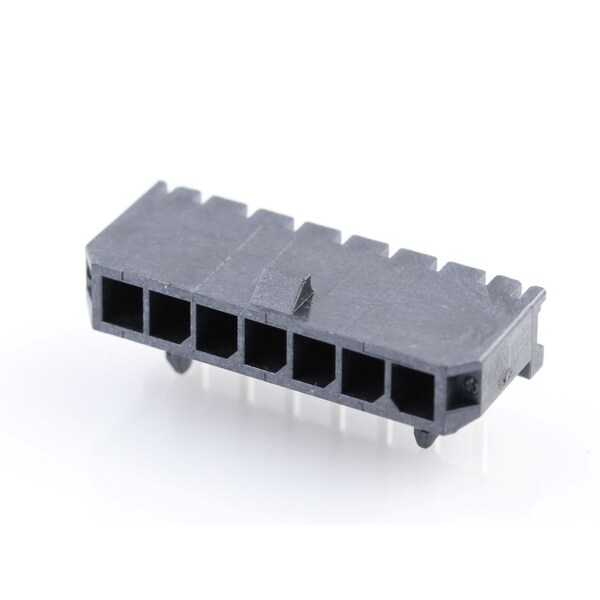

Molex Rectangular Power Connector, 7 Contact(S), Male, Solder Terminal, Receptacle 436500701 - main

Rectangular Power Connector, 7 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 436500701

  • Zoro # G205911122

product price: $1.95
/ea
Sold in multiples of 46 for $89.70

Key Features

Color
Black
Number of Rows
1
Series
43650
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
436500701
Zoro #
G205911122
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.381 µm
Mated Height
6.98mm
PCB Thickness - Recommended
1.60mm

Details

Color
Black
Number of Rows
1
Series
43650
Max. Voltage
600V
Application
Power, Wire-to-Board
Terminal Type
Through Hole
Features
Glow-Wire Capable; Surface Mount Compatible
Max. Temp.
260°C
Hole Center to Center
3 mm
Material
High Temperature Thermoplastic
Standards
UL E29179
Current Rating
8.5 A
Terminal Finish
Tin Plated
Contact Finish
Gold Plated
Flammability Rating
UL 94V-0
Number of Contacts
7
Product Name
Micro-Fit 3.0
PCB Locator
Yes
Orientation
Right Angle
Material - Metal
Brass
Material - Plating Termination
Tin
Max-Duration
30
Material - Plating Mating
Gold
Durability (mating cycles max)
30
Current - Maximum per Contact
8.5A
Temperature Range - Operating
-40° to +125°C
Polarized to PCB
Yes
Component Type
PCB Header
Max-Cycle
3
Circuits (Loaded)
7
Glow-Wire Capable
Yes
Stackable
No
Breakaway
No
PCB Retention
Yes
Flammability
94V-0
Material - Resin
High Temperature Thermoplastic
Max-Temp
260
UL
E29179
CSA
LR19980
Plating min - Mating
0.381µm
Pitch - Mating Interface
3.00mm
Shrouded
Fully
