  9. Rectangular Power Connector, 8 Contact(S), Female, Solder Terminal, Receptacle

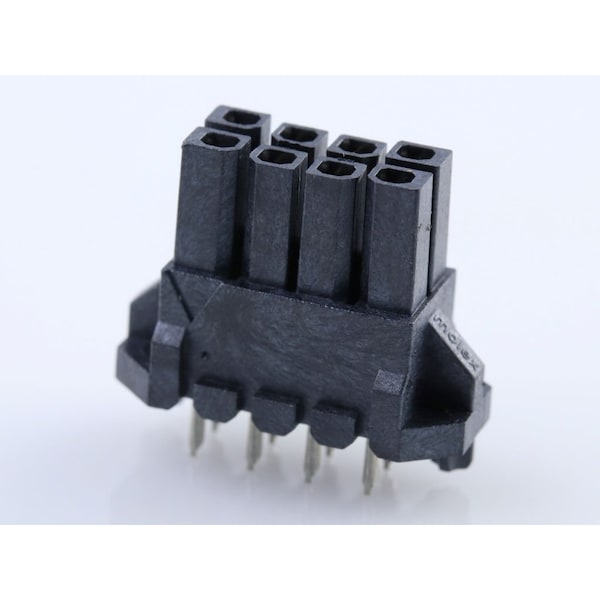

Molex Rectangular Power Connector, 8 Contact(S), Female, Solder Terminal, Receptacle 447690801 - main

Rectangular Power Connector, 8 Contact(S), Female, Solder Terminal, Receptacle

  • Mfr # 447690801

  • Zoro # G205910651

product price: $3.25
/ea
Sold in multiples of 25 for $81.25

Key Features

Color
Black
Number of Rows
2
Series
44769
Max. Voltage
250V
Application
Board-to-Board, Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
447690801
Zoro #
G205910651
UPC #
-
Country of Origin
United States

Dimensions

Contact Plating Thickness
2.54 µm
PCB Thickness - Recommended
1.57mm
PC Tail Length
3.40mm

Details

Color
Black
Number of Rows
2
Series
44769
Max. Voltage
250V
Application
Board-to-Board, Power, Wire-to-Board
Max. Temp.
260°C
Features
Surface Mount Compatible
Terminal Type
Through Hole
Standards
CSA Certified; UL E29179
Hole Center to Center
3 mm
Material
Liquid Crystal Polymer
Current Rating
8.5 A
Flammability Rating
UL 94V-0
Contact Finish
Tin Plated
Terminal Finish
Tin Plated
Number of Contacts
8
Flammability
94V-0
Component Type
PCB Receptacle
PCB Retention
Yes
Orientation
Vertical
Durability (mating cycles max)
30
PCB Locator
Yes
Product Name
Micro-Fit BMI
Circuits (Loaded)
8
Material - Metal
Phosphor Bronze
Material - Plating Termination
Tin
CSA
LR19980
Polarized to PCB
Yes
Max-Cycle
1
Pitch - Mating Interface
3.00mm
Material - Resin
Liquid Crystal Polymer
Polarized to Mating Part
Yes
Plating min - Mating
2.540µm
Max-Duration
5
Glow-Wire Capable
No
UL
E29179
Max-Temp
260
Material - Plating Mating
Tin
Current - Maximum per Contact
8.5A
Temperature Range - Operating
-40° to +105°C
