  9. Rectangular Power Connector, 8 Contact(S), Male, Press Fit Terminal, Receptacle

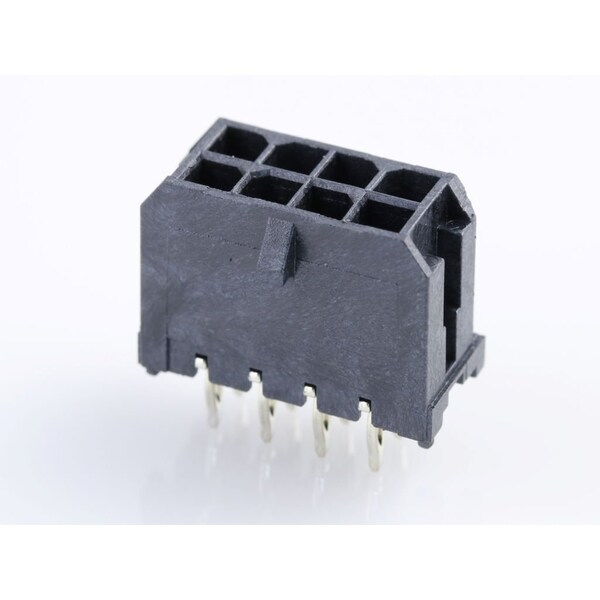

Molex Rectangular Power Connector, 8 Contact(S), Male, Press Fit Terminal, Receptacle 449140801 - main

Rectangular Power Connector, 8 Contact(S), Male, Press Fit Terminal, Receptacle

  • Mfr # 449140801

  • Zoro # G205909945

product price: $2.25
/ea
Sold in multiples of 40 for $90.00

Key Features

Color
Black
Number of Rows
2
Series
44914
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
449140801
Zoro #
G205909945
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
5.08 µm

Details

Color
Black
Number of Rows
2
Series
44914
Max. Voltage
600V
Application
Power, Wire-to-Board
Max. Temp.
105°C
Material
High Temperature Thermoplastic
Standards
CSA Certified; UL E29179
Features
Glow-Wire Capable
Terminal Type
Through Hole - Compliant Pin
Hole Center to Center
3 mm
Current Rating
8.5 A
Flammability Rating
UL 94V-0
Number of Contacts
8
Terminal Finish
Tin Plated
Contact Finish
Tin Plated
Current - Maximum per Contact
8.5A
Material - Resin
High Temperature Thermoplastic
Material - Metal
High Performance Alloy (HPA)
Temperature Range - Operating
-40° to +105°C
Orientation
Vertical
Component Type
PCB Header
Material - Plating Mating
Tin
Breakaway
No
Plating min - Mating
5.080µm
Polarized to PCB
Yes
Product Name
Micro-Fit CPI
PCB Retention
Yes
Stackable
No
Glow-Wire Capable
Yes
Material - Plating Termination
Tin
Pitch - Mating Interface
3.00mm
Flammability
94V-0
PCB Locator
Yes
CSA
LR19980
Durability (mating cycles max)
30
Circuits (Loaded)
8
UL
E29179
Shrouded
Fully
