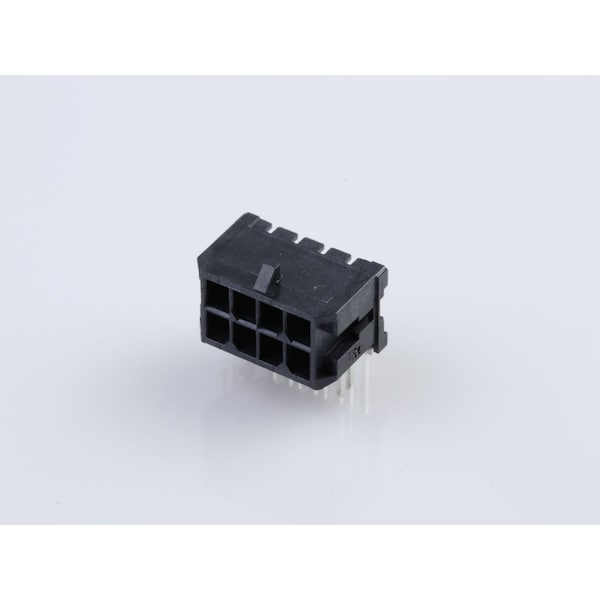

Rectangular Power Connector, 8 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 430450821

  • Zoro # G605910497

product price:
$
1.99
/ea
Sold in multiples of 45 for $89.55

Key Features

Color
Black
Number of Rows
2
Series
43045
Max. Voltage
600V
Application
Power, Wire-to-Board
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
430450821
Zoro #
G605910497
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
0.254 µm
Mated Height
10.06mm
PCB Thickness - Recommended
1.60mm

Details

Color
Black
Number of Rows
2
Series
43045
Max. Voltage
600V
Application
Power, Wire-to-Board
Material
High Temperature Thermoplastic
Standards
CSA Certified; UL E29179
Terminal Type
Through Hole
Max. Temp.
260°C
Features
Glow-Wire Capable; Surface Mount Compatible
Hole Center to Center
3 mm
Flammability Rating
UL 94V-0
Contact Finish
Tin Plated
Current Rating
8.5 A
Number of Contacts
8
Terminal Finish
Tin Plated
Product Name
Micro-Fit 3.0
Flammability
94V-0
Shrouded
Fully
Temperature Range - Operating
-40° to +105°C
Polarized to PCB
Yes
Circuits (Loaded)
8
Plating min - Mating
0.254µm
Current - Maximum per Contact
8.5A
CSA
LR19980
Max-Temp
260
Component Type
PCB Header
Pitch - Mating Interface
3.00mm
Glow-Wire Capable
Yes
Durability (mating cycles max)
30
Material - Metal
Brass
Material - Plating Mating
Tin
Material - Resin
High Temperature Thermoplastic
Max-Cycle
3
Max-Duration
30
Orientation
Right Angle
Breakaway
No
PCB Retention
Yes
UL
E29179
Stackable
No
PCB Locator
Yes
Material - Plating Termination
Tin
