  9. Rectangular Power Connector, 8 Contact(S), Male, Solder Terminal, Receptacle

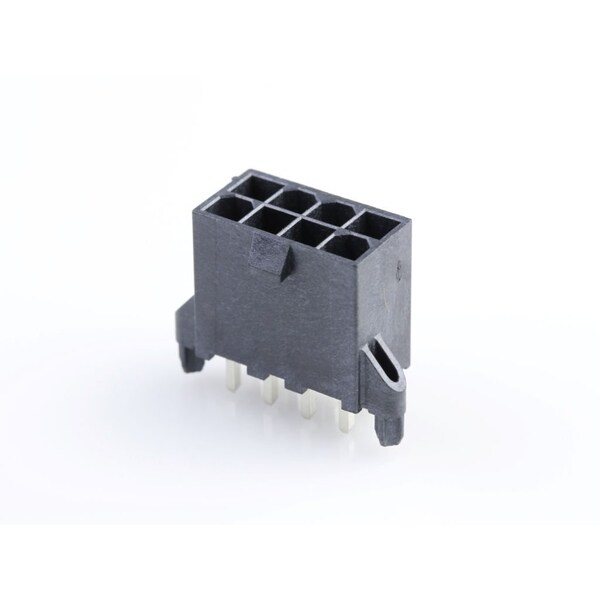

Molex Rectangular Power Connector, 8 Contact(S), Male, Solder Terminal, Receptacle 462070108 - main

Rectangular Power Connector, 8 Contact(S), Male, Solder Terminal, Receptacle

  • Mfr # 462070108

  • Zoro # G105910317

product price: $2.29
/ea
Sold in multiples of 40 for $91.60

Key Features

Color
Black
Number of Rows
2
Series
46207
Max. Voltage
600V AC/DC
Application
Board-to-Board, Power, Wire-to-Board
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
462070108
Zoro #
G105910317
UPC #
-
Country of Origin
Mexico

Dimensions

PCB Thickness - Recommended
2.36mm
PC Tail Length
4.46mm

Details

Color
Black
Number of Rows
2
Series
46207
Max. Voltage
600V AC/DC
Application
Board-to-Board, Power, Wire-to-Board
Max. Temp.
265°C
Features
Glow-Wire Capable; Surface Mount Compatible
Terminal Type
Through Hole
Material
High Temperature Thermoplastic
Standards
CSA Certified; UL E29179
Hole Center to Center
4.2 mm
Current Rating
13 A
Contact Finish
Matte Tin Plated
Flammability Rating
UL 94V-0
Number of Contacts
8
Terminal Finish
Matte Tin Plated
Polarized to PCB
Yes
Pitch - Mating Interface
4.20mm
Material - Plating Mating
Matte Tin
CSA
LR19980
PCB Retention
Yes
Glow-Wire Capable
Yes
PCB Locator
Yes
Shrouded
Fully
Product Name
Mini-Fit Jr.
Flammability
94V-0
Lock to Mating Part
Yes
Circuits (Loaded)
8
Orientation
Vertical
Current - Maximum per Contact
13.0A
Max-Temp
265
Component Type
PCB Header
Max-Cycle
3
Material - Plating Termination
Matte Tin
First Mate / Last Break
No
Durability (mating cycles max)
100
Voltage - Maximum
600V AC (RMS)/DC
Temperature Range - Operating
-40° to +105°C
Breakaway
No
Guide to Mating Part
No
Max-Duration
30
Material - Metal
Brass
UL
E29179
Stackable
No
Polarized to Mating Part
Yes
Material - Resin
High Temperature Thermoplastic
